Product Details:
|
| HDMI Video Resolution: | Up To 4K2K@50/60Hz YCbCr 4:4:4 | Input Ports: | 2×HDMI Type A [19-pin Female] 1×IR Receiver Window |
|---|---|---|---|
| Output Ports: | 2×HDMI Type A [19-pin Female] 1×L/R [3.5mm Stereo Mini-jack] 1×OPTICAL OUT [Optical Jack] | Color: | Black |
| Warranty Time: | 12 Months | Casing Material: | Metal |
| Highlight: | 18Gbps HDMI Matrix Switcher,4K HDMI Matrix Switcher,18Gbps HDCP Switcher |
||
18Gbps HDMI Matrix Switcher
18Gbps HDCP , 2.2 2 input 2 output HDMI Matrix Switcher with 4K2K@50/60Hz (4:4:4)
1. Introduction
The 18Gbps 2x2 HDMI Matrix switcher supports the transmission of video
signal (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two
HDMI displays simultaneously.
2. Features
1. Support analog audio PCM 2.0.
2. Supported optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1,
Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1,
DTS HD-HRA 5.1.
3. Support HDR function
4. Flexible control via panel buttons and IR remote.
3.Specification :
|
Technical |
|
|
HDCP Compliance |
HDCP 2.2 and HDCP 1.x |
|
DVI Compliance |
DVI 1.0 |
|
Video Bandwidth |
594MHz / 18Gbps |
|
HDMI Video Resolution |
Up to 4K2K@50/60Hz YCbCr 4:4:4 |
|
High Dynamic Range |
HDR,HDR 10+,HLD,DOLBY VISION |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
|
Color Depth |
8-bit, 10-bit, 12-bit |
|
HDMI Audio Formats |
PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD |
|
L/R Audio Formats |
Analog stereo PCM 2.0 |
|
Optical Audio Formats |
LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
|
Connection |
|
|
Input ports |
2×HDMI Type A [19-pin female] 1×IR Receiver Window |
|
Output ports |
2×HDMI Type A [19-pin female] 1×L/R [3.5mm Stereo Mini-jack] 1×OPTICAL OUT [Optical jack] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
144mm (W)×59.5mm (D)×18mm (H) |
|
Weight |
208g |
|
Power Supply |
Input: AC100~240V 50/60Hz Output: DC5V/1A (US/EU standard, CE/FCC/UL certified) |
|
Power Consumption |
2.7W |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |

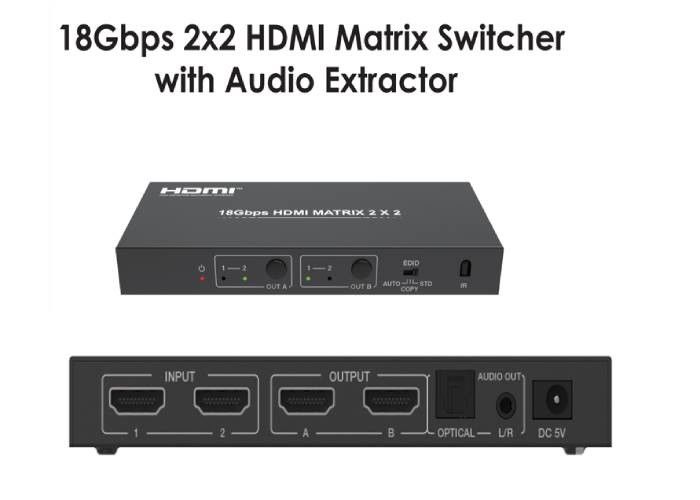

5. Products' picture :
