HDCP2.2 HDMI Matrix Switcher
18Gbps HDCP 2.2 8 input 8 output HDMI Matrix Switcher with 4K2K@50/60Hz (4:4:4)
1. Introduction
The 18Gbps 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz
YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays.
Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports.
2. Features
☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
Master Audio)
☆ Audio de-embedded is supported via analog and coax ports
☆ ARC, CEC and smart EDID management are supported
☆ 1U rack mounted design with front panel OLED display
☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
3. Specifications
|
Technical |
|||
|
HDMI Compliance |
HDMI 2.0b |
||
|
HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
||
|
Video Bandwidth |
18Gbps |
||
|
Video Resolution |
Up to 4K2K@50/60Hz (4:4:4) |
||
|
Color Space |
RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
||
|
Color Depth |
8-bit, 10-bit, 12-bit |
||
|
HDMI Audio Formats (Pass-through) |
LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
||
|
Coax Audio Formats |
LPCM 2.0, Dolby Digital / Plus, DTS 5.1 |
||
|
L/R Audio Formats |
PCM2.0 |
||
|
HDR formats |
HDR10,HDR10+,Dolby Vision, HLG |
||
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
||
|
Connection |
|||
|
Input Ports |
8×HDMI Type A [19-pin female] 1×IR EXT [3.5mm Stereo Mini-jack] |
||
|
Output Ports |
8×HDMI Type A [19-pin female] 8×Coax Audio (RCA) 8×L/R Audio [3.5mm Stereo Mini-jack] |
||
|
Control Ports |
1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9] |
||
|
Mechanical |
|||
|
Housing |
Metal Enclosure |
||
|
Color |
Black |
||
|
Dimensions |
440mm (W)×200mm (D)×44.5mm (H) |
||
|
Weight |
2.8kg |
||
|
Power Supply |
Input: AC 100 - 240V 50/60Hz Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified) |
||
|
Power Consumption |
43W |
||
|
Operating Temperature |
-10°C ~ 45°C / 14°F ~ 113°F |
||
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
||
|
Relative Humidity |
20~90% RH (non-condensing) |
||
|
Resolution / Cable length |
4K60 - Feet / Meters |
4K30 - Feet / Meters |
1080P60 - Feet / Meters |
|
HDMI IN / OUT |
16ft / 5M |
32ft / 10M |
50ft / 15M |
|
The use of “Premium High Speed HDMI” cable is highly recommended. |
|||

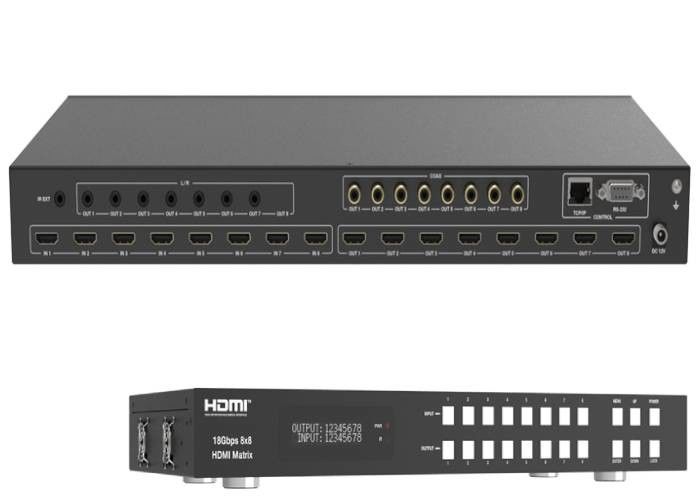

4. Products' picture:
