Product Details:
|
| Product Name: | 1 In 4 Out HDMI Lcd Video Screen Wall Controller With 2x2 , 1x2 , RS232 | Input Signal: | VGA,HDMI,Video,USB |
|---|---|---|---|
| Output Signal: | 4 X HDMI Output | Control Mode: | RS232、Remote 、case Key |
| Power Supply: | AC: 100 To 240 V | Weight(1U): | 1KG |
| Highlight: | 1x2 LCD Video Wall Controller,DC12V LCD Video Wall Controller,RS232 Multi Screen Processor |
||

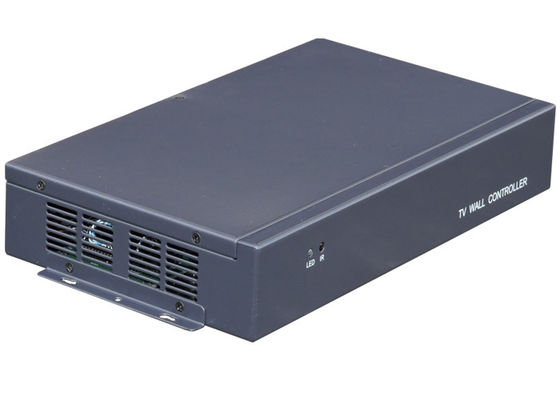

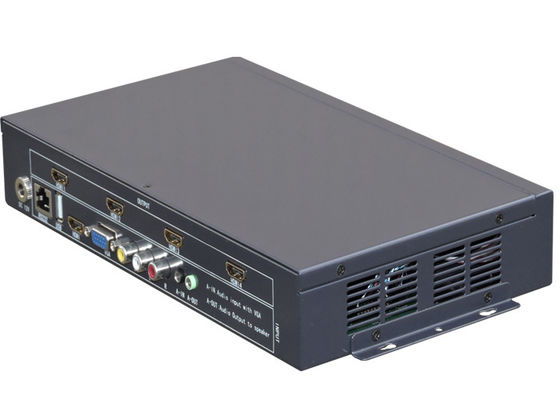

1x2 LCD Video Wall Controller
1 in 4 out HDMI lcd video screen wall controller with 2x2 , 1x2 , RS232
1, Product introduction:
The BOX is a HD multi-screen processor which aim specially at LCD TV ,Ultra-narrow side LCD screen ,projector, can customize 2 to 25 HDMI output stitching according to the user demand and can customize unlimited joint by cascade .Product using high-definition processing chip,so it can support 1080P signal for output or input and in the meantime can support 1 composite video,1 VGA,1USB,1 HDMI to input,and all input signal can switch to multi-screen process display ,audio and related video also output simultaneously.
2, Function Introduction:
| name | Specification |
| Input signal | |
| VGA |
HD15 interface and binding1 audio interface of 3.5 Support 640*480/85HZ to 1920*1200/60HZ |
| HDMI | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
| Video | Automatic identification the system of NTSC,PAL and SECAM,binding 1 audio interface of 3.5 |
| USB |
Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT |
| Output signal | |
| HDMI interface |
4 HDMI output,support joint pattern of 2*2,1*4,4*1; Support customizing output signal of 2 to 25; 1920*1080P/60HZ,1280*720,60HZ; |
| Audio | 3.5 Audio interface,support left and right channels stereo,audio signal switch synchronously |
| others | |
| Control mode | Remote,RS-232 |
| Power supply | DC:12V |
| Joint pattern | Quad simple joint |
| Power | 20W |
| Chassis Specifications | |
| Dimensions | 269mm(L)*43mm(H)*157mm(W) |
| Weight | 1.1kg |
3, System Topology
