Product Details:
|
| Product Name: | 1 Input 9 Output LCD Video Wall Screens Controller 3X3 With IR RS232 | Audio: | 3.5 Audio Interface,support Left And Right Channels And Stereo,AV Signal Switch Synchronously |
|---|---|---|---|
| Power Supply: | AC: 100 To 240 V | Dimensions(1U): | 1U 19 Inch Standard Crate,442mm(L)*45mm(H)*242mm(W) |
| Color: | Black | Shelling Material: | Metal |
| Highlight: | RS232 Video Wall Controller 3X3,FCC 3x3 Video Wall Controller,RoHs HDMI Video Wall Controller |
||

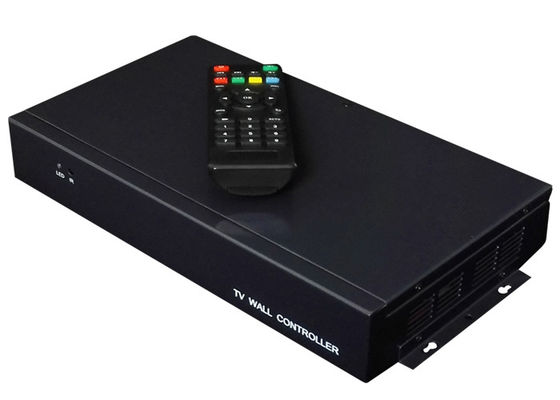

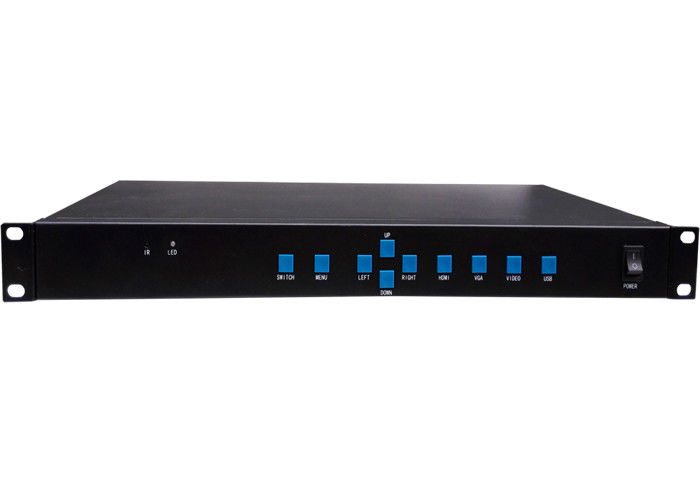

1 Input 9 Output LCD Video Wall Screens Controller 3X3 With IR RS232
1. Product introduction:
9 channels video wall controller 3×3 2×4 4×2 is a professional video wall processor to
distribute video signal to multiple TV monitors for splicing display. It supports HDMI DVI
VGA USB inputs, you can switch to select display one of them at will.
2. Function Introduction:
2.1 Multi-screen model
User can increase or reduce output modules due to adopt modular design. And single machine
can 25 maximum HDMI joint signal output with compatibility DVI protocol . It can realize unlimited
joint through cascade connection; According to user demand , single machine can be customized
various kinds of multi-screen patterns such as 2*2,3*3,1*2,2*3,3*2,2*4,4*2,2*5,5*2 ect.
2.2 Input signal
It can support 4 input signal in total consist of 1 composite video,1 VGA ,1 HDMI,1 USB; and
HDMI and USB interface with audio and video decoding funtion,composite video and VGA signal
add relevant audio interface .What's more ,all input video signal can switch to with audio output
in synchronization .Following is the interface diagram:
2.3 Mirror function
Compare with common multi-screen processor,it can realize 180°mirror overturn function toward
each single display unit. It will be sharply decreasing the gap of LCD joint, which make image
more vivid if LCD TV overturn 180°toward above row when user joint ordinary LCD TV.
Following shown:
The specifications of the 1 Input 9 Output LCD Video Wall Controller 3X3 With IR RS232:
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Product name | 1 Input 9 Output LCD Video Wall Controller 3X3 With IR , RS232 |
System Topology of the 1 Input 9 Output LCD Video Wall Screens Controller 3X3 With IR RS232:
