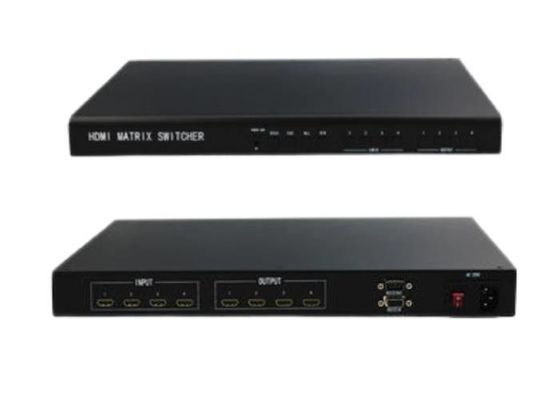

HDCP1.3 HDTV 1920x1080P 60HZ Matrix Video Wall Processor 4 In 4 Out
4 In 4 Out HDMI Video Wall Controller
Product overview:
Matrix Switcher is a high-performance professional switching device with embedded intelligent control. It is used to synchronously switch
each audio and video input signal to any output channel of audio and video. Adopt a unique processing method that greatly improves the switching speed of the device.Support a variety of control methods, flexible operation of switchers, widely used in radio and television engineering, multimedia conference halls, large-screen display engineering, television teaching, command and control centers and other places;
Features:
• • • • Interface bandwidth 2.25Gbps (total bandwidth 6.75Gbps), supporting the highest resolution:
• • • • HDPC:1920x1200P@60_24bit;HDTV1920x1080P@60_36bit；
• • • • Support for the hdcp1.3 revision, providing outstanding security and digital content protection;
• • • • Support fast switching operation; support infrared remote control remote control;
• • • • The input and output boards support the card function and can be hot swapped on site;
• • • • Support basic matrix control instructions and basic matrix functions;
Technical parameters :
| video | |
| protocol | Support hdcp1.3 protocol, support hdmi1.3 protocol, compatible with dvi1.0 protocol |
| Gain | 0 dB |
| Interface bandwidth | 2.25Gbps (6.75Gbps total, 2.25Gbps per color) |
| Maximum support resolution |
HDPC:1920x1200P@ 60_24bit, HDTV:1920x1080P@60_36bit |
| Bit clock jitter | <0.15 Tbit |
| Bit rise time | <0.3Tbit (20%--80%) |
| Bit fall time | <0.3Tbit (20%--80%) |
| Maximum transmission delay | 5nS(±1nS) |
| Switching speed | 200 ns (maximum time) |
| Video input | |
| interface | Vga/dvi-d/hdmi-a female interface |
| Signal strength | T.M.D.S +/- 0.4Vpp |
| impedance | 50 Ω |
| Enter edid | Edid live rewritable |
| Recommended maximum input distance | Less than 40 meters at 1920x1080@60 (recommended use of certified HDMI Special wire, such as Molex TM wire) |
| Video output | |
| interface | Vga/dvi-d/hdmi-a female interface |
| impedance | 50Ω |
| Recommended maximum output distance | Less than 10 meters at 1920x1200@60 (recommended use of certified HDMI-specific wires such as Molex TM wires) |
| Control type | |
| Serial control interface | Rs-232, 9-pin male and female d-type interface |
| Baud rate and protocol | Baud rate: 9600, data bits: 8 bits, stop bits: 1, no parity |
| Serial control port structure | 2 = TX, 3 = RX, 5 = GND |
| specification | |
| power supply | 100VAC ~ 240VAC, 50/60 Hz, international adaptive power supply |
| temperature | Storage and use temperature: -20° ~ +70° |
| humidity | Storage and use humidity: 10% ~ 90% |
| Chassis size | Subject to actual model |
| product weight | Subject to actual model |
| Mean time between failures | 30,000 hours |
| Warranty | 1 year free warranty, lifetime maintenance |
