Product Details:
|
| Name: | 8x8 HDCP Seamless Matrix 4k 4x4 Hdmi Matrix | Serial Control Port:: | DB9 RS232 Female Connector |
|---|---|---|---|
| Panel Chassis Structure:: | Pluggable Signal Card | Front Panel:: | Button |
| Protocol: | TCP/IP | Power Supply: | 23W |
| Highlight: | 8x8 4k HDMI Matrix Switch,23W 4k HDMI Matrix Switch,8x8 HDMI Matrix 4k 60hz |
||

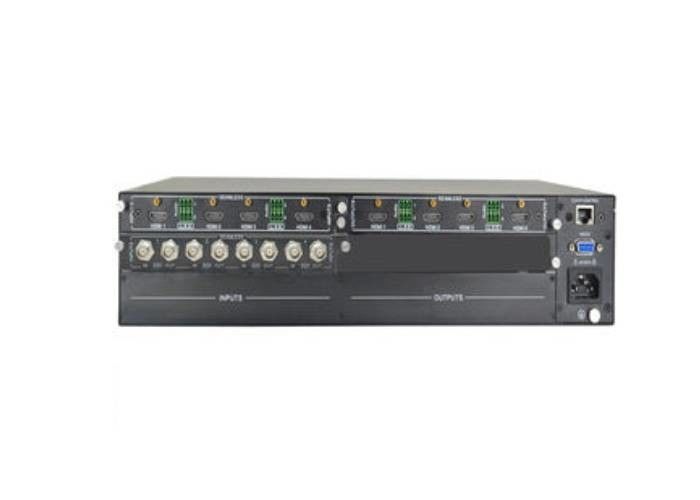

8x8 HDCP seamless matrix 4k 4x4 hdmi matrix extender with 4 receivers
8x8 HDCP seamless matrix 4k 4x4 hdmi matrix Introduction
They are Modular HDMI Matrix Switchers that allow any input to be routed to any output, or the same input to be
routed to all outputs, or any combination.
Our HDMI Modular Matrix Switchers can be controlled by remote control, front panel buttons or color display,
an RS232 port, Windows software & optional Crestron & Control4 Drivers.
Features
1. Connects any of 8 HDMI sources to any of 8 HDMI displays
2. Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:4:4)
3. Signaling rates up to 3.4 Gbits for flawless 4K output
4.8x8 HDCP seamless matrix 4k 4x4 hdmi matrix
Video Matrix Switcher Specification
| Video-Input | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 m |
| Video Output | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Max. Distance | 15 m |
| Impedance | 100 Ω |
| Video | |
| Max. Pixel Clock | 340 MHz |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Compliance | HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Distance | Up to 15 m |
| Product name | 8x8 HDCP seamless matrix 4k 4x4 hdmi matrix extender with 4 receivers |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) |
| Environmental | |
| Operating Temperature | 0-50°C |
| Humidity |
10%～90%, Non-Condensing
|
| Storage Temperature | -20 - 60°C |
