Product Details:
|
| Input Ports: | 1x HDMI, 1 X Min- USB | Output Ports: | 1xHDMI, 1xEarphone |
|---|---|---|---|
| Dimensions(mm):: | 93(D)x84(W)x28(H) | Wight (g): | 155g |
| HDMI Input Resolution: | 480i To 4Kx2K@30Hz | HDMI Output Resolution: | 4Kx2K@60Hz,4Kx2K@30Hz,1080P@60Hz,720P@60Hz |
| DVI Output Resolution: | 1080P@60Hz,720P@60Hz | Power Consumption (Max): | 3.5W |
| Highlight: | 4Kx2K HDMI Converter,3.5W HDMI Converter,3.5W HDMI To HDMI Converter |
||
4Kx2K HDMI Converter

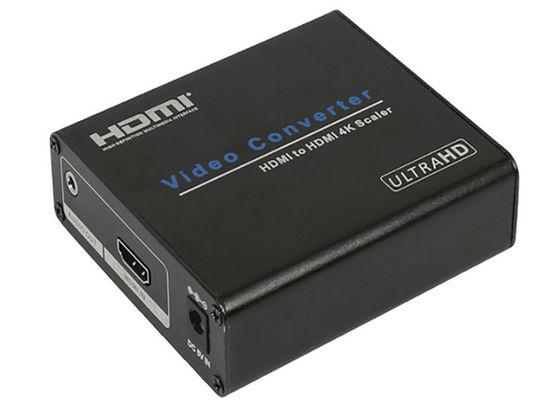

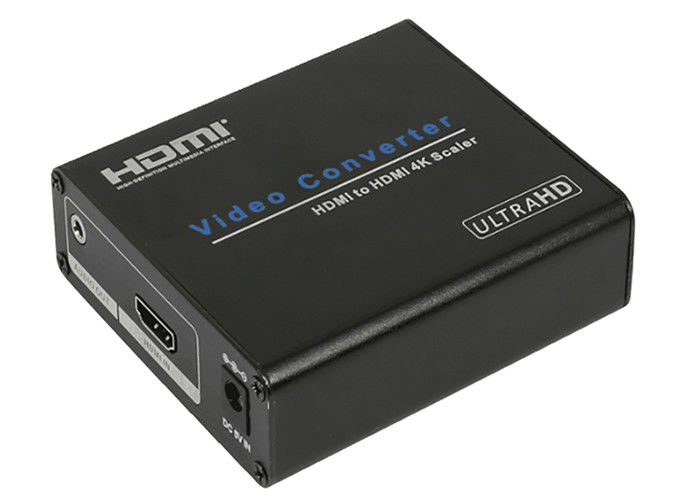

HDMI to HDMI 4Kx2K Scaler Converter Box
1. Introduction
The HDMI to HDMI 4Kx2K Scaler Converter is a universal converter for HDMI input to HDMI 4Kx2K@60Hz output.
The scaler up/down conversion in this module employs black/white level expansion, color transition improvement,
dynamic range expansion, blue stretch , auto-detect and auto-convert HDMI to HDMI output.
2. Features
1. No need to install drivers, portable, flexible, plug and play.
2. Provide advanced signal processing with great precision, colors, resolutions, and details.
3. Support scaler up, scaler down digital signal porcess.
4. Support multi- HDMI input formats.
5. Support HDMI 4Kx2K@60Hz, 4Kx2K@30Hz,1080p@60Hz or 720p@60Hz output.
3. Package
HDMI to HDMI 4Kx2K Scaler Converter 1 pcs
5V1A DC Power Supply Adaptor 1 pcs
Operation Manual 1 pcs
4. Specification
Input ports.............................................................................. 1x HDMI, 1 x Min- USB
Output ports........................................................ ..................1xHDMI, 1xEarphone
Dimensions(mm).................................................................... 93(D)x84(W)x28(H)
Wight (g)................................................................................... 155g
HDMI input resolution................................................................. 480i to 4Kx2K@30Hz
HDMI output resolution................................................................ 4Kx2K@60Hz,4Kx2K@30Hz,1080P@60Hz,720P@60Hz
DVI output resolution....................................................................1080P@60Hz,720P@60Hz
Operating Temperature................................................................. 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature ..................................................................-20°C ~ 60°C / -4°F ~ 140°F
Elative Humidity .........................................................................20 ~ 90% RH (Non-condensing)
Power Consumption (Max)........................................................... 3.5W
ESD Protection Human Body Model.............................................± 8kV (air-gap discharge) ± 4kV (contact discharge)
5. Application diagram:
