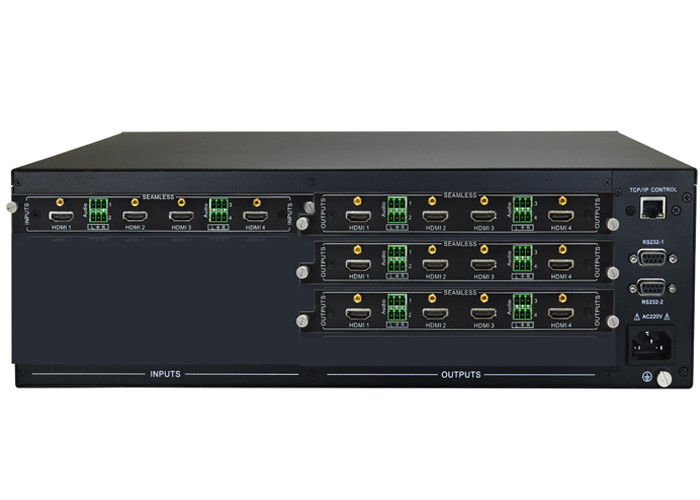

4K UHD 4x12 Modular Video Matrix Switcher with IR, Ethernet & RS-232 Control

Description :

The WL-HDVM is a high performance HDMI Matrix Switcher. It can switch (16) HDMI HD sources to (16) HDMI HD display devices simultaneously. The OLED screen on the front panel will display the input and output port in real time. It supports a maximum resolution up to 4K60Hz YUV 4:2:0 and supports HDCP 2.2. Select smart EDID management via a PC with the Web GUI. Control provided by on-panel buttons, IR remote control, RS-232, LAN, and Web GUI. This product has a 3 year warranty.

FEATURES:

• HDMI 2.0b (4K60Hz YUV 4:2:0), HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Supports resolution up to 4K2K@50/60Hz (YUV 4:2:0) for all HDMI ports
• Supports pass-through audio up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio
• Supports HDR-10 and Dolby Vision
• Supports smart EDID management
• Supports on-panel button, IR remote control, RS-232, LAN and Web GUI control
• Supports power off remember function
• 1U rack mounted design with metal enclosure

SPECIFICATION:

• Inputs: (16) HDMI Type A [19-pin female] / LAN [RJ45, Control] / RS-232 [9-pin D-sub, Control]
• Outputs: (16) HDMI Type A [19-pin female] / OLED display screen
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Video Bandwidth: 10.2Gbps
• Video Resolutions: 4K2K@50/60Hz YUV4:2:0, 4K2K@30Hz YCbCr / YUV 4:4:4, 1080p@60Hz YCbCr4:4:4 / 4:2:2
• Color Depth: 8/10/12bit (1080p60Hz, YCbCr4:4:4) 8bit (4K60Hz, YUV 4:2:0)
• Color Space: YCbCr 4:4:4 / 4:2:2, YUV4:2:0
• HDMI Audio Formats: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio
• ESD Protection Human Body Model:
  • ± 8kV (air-gap discharge)
  • ± 4kV (contact discharge)
• Housing: Metal Enclosure
• Color: Black
• Power Supply: 100~240VAC 50/60Hz
• Power Consumption: 31.3W
• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
• Relative Humidity: 20~90% RH (non-condensing)

CONNECTION DIAGRAM:
