Product Details:
|
| Serial Control Port: | DB9 RS232 Female Connector | Panel Chassis Structure: | Pluggable Signal Card |
|---|---|---|---|
| Front Panel: | Button | Protocol: | TCP/IP |
| Dimension: | 483x318x88mm(with Ears) | Product Name: | HDMI Seamless Matrix Switcher Hdmi Splitter Matrix Over TCP IP |
| High Light: | IP Seamless Matrix Switcher,TCP Seamless Switcher,TCP HDMI Matrix Switchers |
||

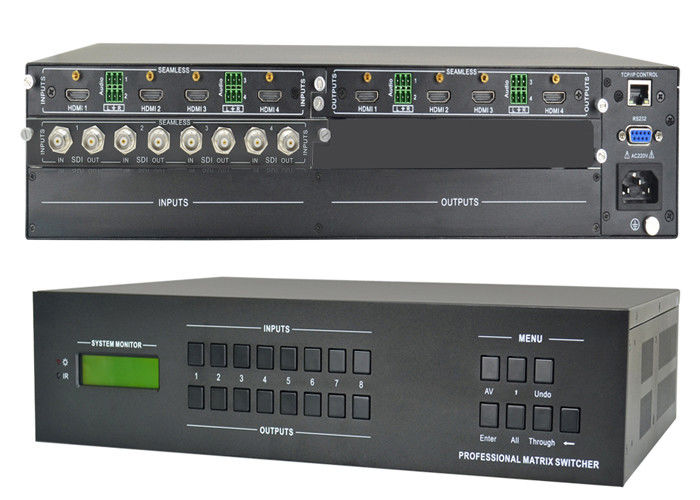

HDMI Seamless Matrix Switcher Hdmi Splitter Matrix Over TCP IP
Product Description
modular HDMI Seamless Matrix Switcher Hdmi Splitter Matrix Over TCP IP that allow them to be an all-in-one solution for a variety of different projects. They can be used in Restaurants & Sports Bars. Because they are Modular HDMI Matrix Switchers they allow any input to be routed to any output or the same input to be routed to all outputs, or any combination.
Our HDMI Modular Matrix Switchers can be controlled by remote control, front panel buttons or color display, an RS232 port, Windows software & optional Crestron & Control4 Drivers.
Product Features
1. Built-in international universal power supply;
2. Full metal chassis compatible with standard 19-inch cabinets.
3. Support matrix front panel LCD standby logo and control software.
4. Support HDCP to solve corresponding devices such as Blu-ray DVD and so on.
5.HDMI Seamless Matrix Switcher Hdmi Splitter Matrix Over TCP IP.
Product Specification
| Video-Input | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 m |
| Video Output | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Max. Distance | 15 m |
| Impedance | 100 Ω |
| Video | |
| Max. Pixel Clock | 340 MHz |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Compliance | HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Distance | Up to 15 m |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) |
| Environmental | |
| Operating Temperature | 0-50°C |
| Humidity |
10%～90%, Non-Condensing
|
| Storage Temperature | -20 - 60°C |
| Product name | HDMI Seamless Matrix Switcher Hdmi Splitter Matrix Over TCP IP |
