Product Details:
|
| Serial Control Port:: | DB9 RS232 Female Connector | Pin Configuration:: | 2-TX，3-RX，5-GND |
|---|---|---|---|
| Panel Chassis Structure:: | Pluggable Signal Card | Front Panel:: | Button |
| Protocol: | TCP/IP | Power Supply: | 23W |
| Product Name: | HDMI 4k Hdbaset Video Matrix 8x8 Hdmi Over Cat6 Matrix Ultra Hd Hdmi Matrix Switch 6x2 | ||
| High Light: | HDBT 4k Video Switcher,8x8 4k Video Switcher,8x8 4k Matrix Switcher |
||

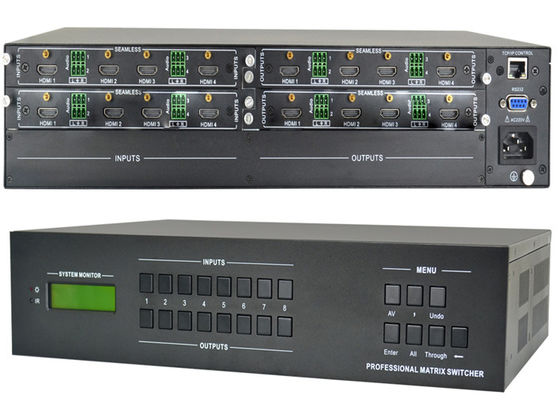

HDMI 4k Hdbaset Video Matrix 8x8 Hdmi Over Cat6 Matrix Ultra Hd Hdmi Matrix Switch 6x2
1. Introduction
HDMI 4k Hdbaset Video Matrix 8x8 Hdmi Over Cat6 Matrix Ultra Hd Hdmi Matrix Switch 6x2 can be controlled
by a remote control, front panel buttons or color display,an RS232 port, Windows software & optional
Crestron & Control4 Drivers.
2. Features
3. Specification
| I/O card board: |
4 - HDMI ports/card |
| Input Connector: |
HDMI A female; T.M.D.S. 2.9V/3.3V, 75 ohms |
| Video Output: | HDMI A female; T.M.D.S. 2.9V/3.3V; 75 ohms |
| Gain: |
|
| Resolution: | Up to 1080p 4:4:4 |
| HDMI Standard: | HDCP 1.4 - supports CEC, EDID and DDC and compliant with HDCP |
| Control Options: | Buttons, IR remote & RS232 (9-pin female D connector) |
| Worldwide Power Supply: | 100VAC ~ 240VAC, 50/60Hz; 50W |
| Temperature: | -10 ~ 50 degrees C |
| Working Humidity: | 10 ~ 90 degrees |
| Regulation: |
CE, FCC and CCC |
| Product name: | HDMI 4k Hdbaset Video Matrix 8x8 Hdmi Over Cat6 Matrix Ultra Hd Hdmi Matrix Switch 6x2 |
4. Connection diagram :
