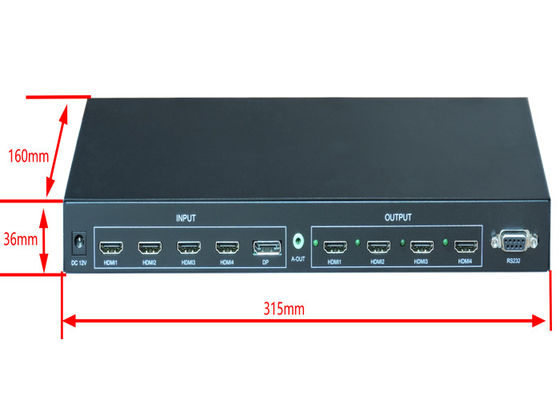

4K 4x4 HDMI seamless matrix switcher with video wall controller

Ⅰ Product introduction

It is a 4K video splicing processor, and it is also a 4x4 HDMI seamless switcher. Supports up to 4K@60HZ splicing

and 4x4 seamless switching. Support 4 HDMI, 1 DP input and 4 HDMI output, DP input can only be used for

splicing.

Ⅱ Main functions

• A machine includes splicing and seamless switching functions at the same time, and functions can be selected freely.
• Support seamless switching function in matrix mode.
• Support 1x2, 1x3, 1x4, 2x1, 3x1, 4x1,2x2 mode in splicing function
• Support any display unit signal rotation 180 degrees.
• Edge shielding function, splicing mode supports horizontal and vertical splicing adjustment;
• Matrix mode supports any output 4 screen split display;
• Support 1 DP1.2, 1 HDMI2.0, 3 HDMI1.4 inputs, the resolution up to 4K@60hz.
• 4 HDMI outputs, output resolution supports 1024*768@60HZ, 1280*800@60HZ, 1280*720@60HZ, 1920*1080@60HZ, 1920*1200@60HZ, switchable;
• Support remote control, RS232, chassis button control;

Ⅲ Detailed introductions

1, Input signals

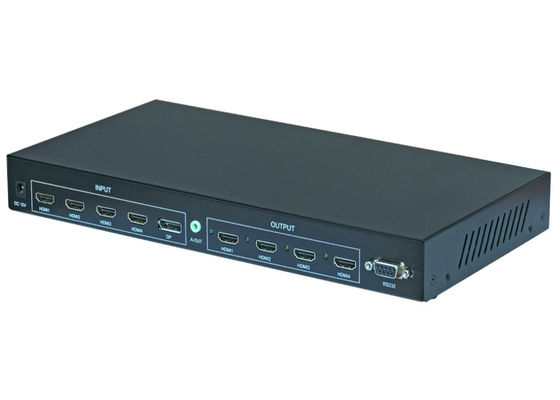

Support 1 DP_1.2(4K@60hz) , 1 HDMI_2.0 ,3 HDMI_1.4(4K@30hz) inputs

2, output signals

Support 4 HDMI_1.3 output , output resolution supports 1024*768@60HZ, 1280*800@60HZ, 1280*720@60HZ, 1920*1080@60HZ, 1920*1200@60HZ, switchable;

Support 1 3.5 mm audio output to connect the sound.

3, Splicing, matrix mode switching function

Users can choose splicing mode or seamless switching mode. DP input can only be used in splicing mode.

4, Seamless switching function

Support HDMI input signal 4x4 seamless switching function, and can also support any screen to display 4 input signals at the same time.

5, Splicing function
The product's splicing function is integrated design, a single machine can achieve 4 HDMI signal splicing output, and a single machine can set various splicing modes such as 1x2, 2x1, 2x2, 1x3, 3x1, 1x4, 4x1, etc.

5.1 180 degrees rotation function

Support to set any display unit to rotate 180 degrees.

       5.2 Edge shielding function

After setting the edge seam processing, a part of the image is hidden, so as to achieve the effect of no deformation and no distortion.

6, control method

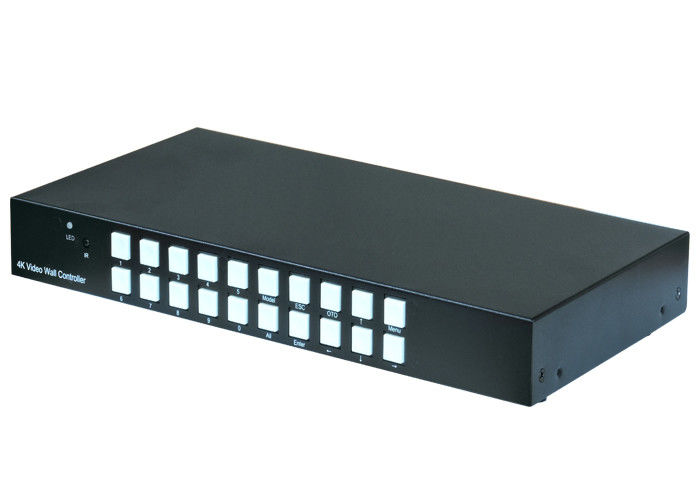

The device can be controlled through the remote control, chassis buttons, RS-232, and central control.
