16x16 HDCP1.4 HDMI Matrix Switcher RS232 IR Control support 3D TV

16x16 HDCP1.4 HDMI Matrix Switcher RS232 IR Control Support 3D TV

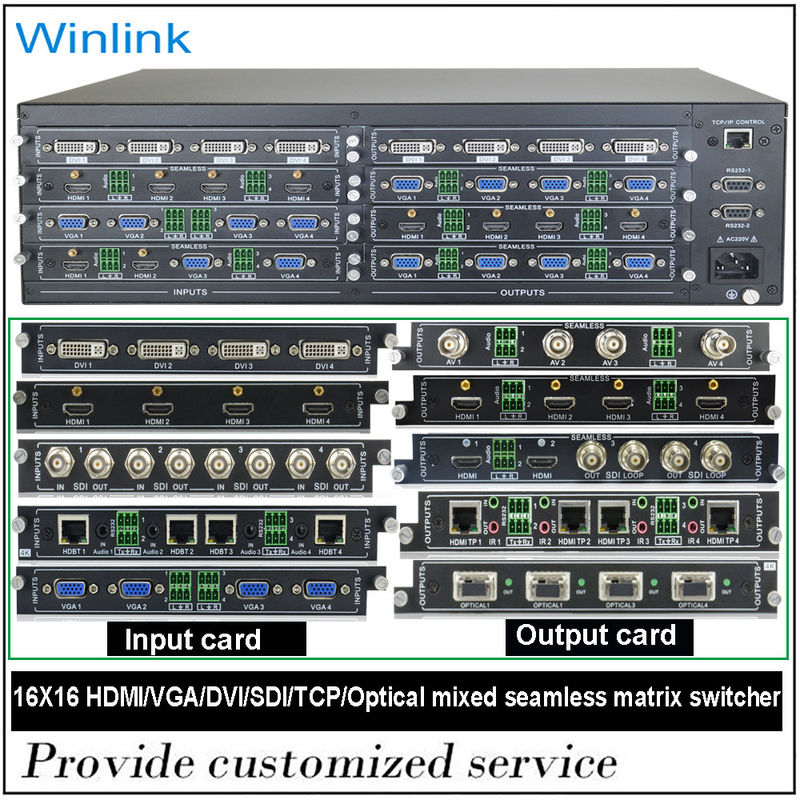

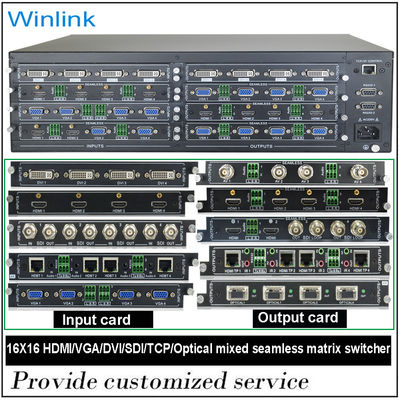

16 x 16 HDMI Matrix Switcher

Ⅰ. Description

The WL-1616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.

The WL-1616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the WL-1616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts.

The WL-1616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more.

II. Features

1. Supports display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz

2. 3D HDMI 1.4a video format

support.

3. 3D video support including Frame Packing for all 3D formats up to a 297MHz TMDS clock.

4. Supports deep color up to 48-bit per pixel.

5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).

6. Supports reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.

7. Full colorimetry including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color. 3 8. Operates for TMDS clock frequencies up to 300MHz.

III. Package

HDMI Matrix --------------------------------------------------------- 1PC

Power Adapter -------------------------------------------------------- 1PC

Operation Manual ---------------------------------------------------- 1PC

Remote Control---------------------------------------------------------1PC

RS232 Serial Cable----------------------------------------------------1PC

IV. Specifications

1. Frequency Bandwidth : 297MHZ[10.2Gbps]

2. Input Ports  : 16 x HDMI Female input ports

3. Output Ports  : 16 x HDMI Female output ports

4. Power Supply  : DC 12V, 2.5A

5. ESD Protection Human Body Model:   ± 8kV (air-gap discharge) ± 4kV (contact discharge)

6. Dimensions (mm)  :  1 15(W) X 270 (D) X 45 (H)

7. Weight  :  (g)  900

8. Operating Temperature :  0°C ~ 40°C / 32°F ~ 104°F

9. Storage Temperature :   -20°C ~ 60°C / -4°F ~ 140°F

10. Relative Humidity :   20 ~ 90% RH (Non-condensing)

11. Power Consumption :    (Max) 20W

Ⅴ: Using Application Areas :
