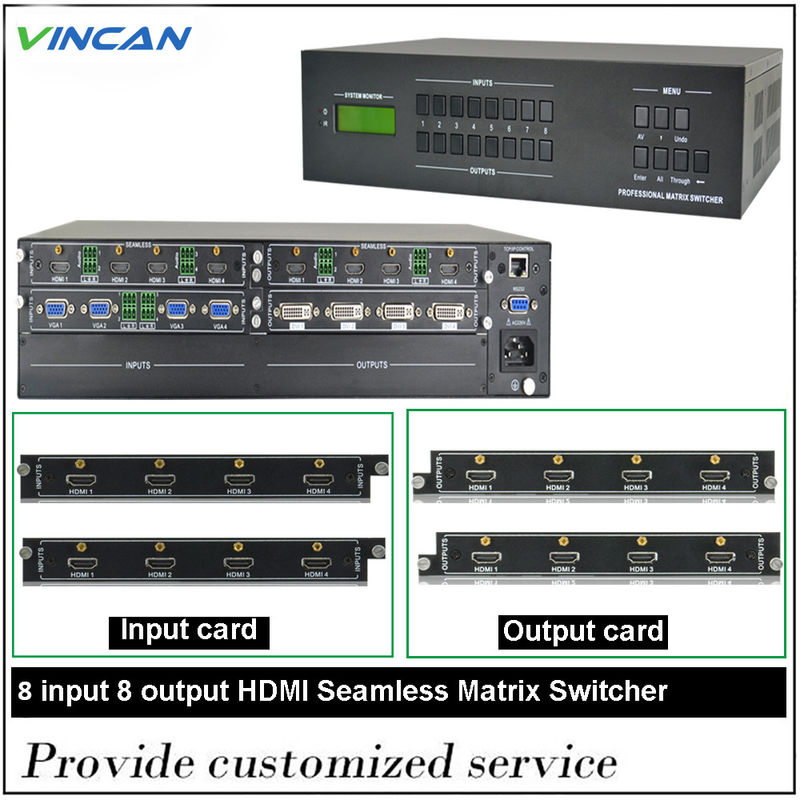

8 In 8 Out 22W HDMI Matrix Switcher Full Digital HDMI Signal Switcher

8 In 8 Out 22W HDMI Matrix Switcher Full Digital HDMI Signal Switcher
8 In 8 Out 22W HDMI Matrix Switcher Full Digital HDMI Signal Switcher

Large Image :  8 In 8 Out 22W HDMI Matrix Switcher Full Digital HDMI Signal Switcher

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-0808H
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box and standard export package for 8 In 8 Out HDMI Matrix Switcher
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Contact Now

8 In 8 Out 22W HDMI Matrix Switcher Full Digital HDMI Signal Switcher

Description
Certification:: FCC, Ce, RoHS Input: 8x HDMI
Output: 8 X HDMI Control Method: RS-232、TCP/IP ,IR
HDMI Version: HDMI 1.4 With 3D TV Support Digital Content Protection: Compatible With HDCP 1.4
Hot Plug: Plug And Play, Easy To Install, Support Hot Plug Product Weight: 4KG
Rated Power: 22W
Highlight:

22W HDMI Matrix Switcher

,

TCP HDMI Matrix Switcher

,

22W HDMI Signal Switcher

8 In 8 Out 22W HDMI Matrix Switcher Full Digital HDMI Signal



8 In 8 Out HDMI Matrix Switcher



Product overview :

1．Support 8 HDMI video inputs and cross switching of 8 HDMI video outputs.

2．Support the highest resolution 4K x 2K,support 3D video.
3．The front panel LCD shows the real-time feedback status. If there is no operation for a long time, the display automatically enters the sleep low power state.
4．Supports HDMI 1.4 protocol, HDCP1.4 protocol, and 3D TV, compatible with DVT 1.0 protocol.
5．Multiple control methods: keypad operation, RS-232, TCP / IP.
6．Flexible EDID reading mechanism to solve various connection compatibility issues.
7．Integrated multiple control protocols, convenient and quick to use with various central control equipment.
8．Product firmware can be upgraded on-site through the network port, which can easily provide remote support on site
and customization of special functions for users.
9．Built-in equalizer up to 100 feet at input and 50 feet at output.
10．Powerful storage function, can store and recall multiple pre-stored switching modes; has power-down memory function, with power-off site protection function.
11．Standard 1U industrial chassis, easy installation, fast operation, support 7X12 hours of uninterrupted work, support AC power in the range of 90-264V.



Technical parameters :

Model
WL-0808H
Specification
Input / output support 8 channels each
Input signal
Full digital HDMI signal
Output signal
Full digital HDMI signal
Control method
RS-232,TCP/IP
Support resolution
The highest resolution can reach 4k x 2k (4096 × 2160)
HDMI version
HDMI 1.4 with 3D TV support
Digital content protection
Compatible with HDCP 1.4
Hot plug
Plug and play, easy to install, support hot plug
Input line length
Built-in equalizer at input up to 100 feet
Output line length
≤50 feet
Input / Output interface type
HDMI Interface Type A 19-pin Female
External power
110~220 VAC
Working environment
Storage and use temperature: -20 ° ~ + 70 ° C
humidity: 10% ~ 90%
Product weight
4KG
Rated power
22W
Chassis size (WxDxH)
1U(440mm x 263mm x 44mm)
Warranty
1 year free warranty and lifetime maintenance



8 In 8 Out HDMI Matrix Switcher :
8 In 8 Out 22W HDMI Matrix Switcher Full Digital HDMI Signal Switcher 0



Tag:

HDMI 16x16 Matrix Switcher,

4x4 HDMI Matrix Switcher,

Video Matrix 8x8
