Product Details:
|
| HDCP Compliant: | HDCP 2.2 / 1.x | Video Bandwidth: | 594MHz / 18Gbps |
|---|---|---|---|
| Video Resolution: | 480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz | Inputs: | 4×HDMI Type A [19-pin Female] 1×IR Receiver Window 1×Micro USB |
| Outputs: | 4×HDMI Type A [19-pin Female] | Dimensions: | 220mm(W)×205mm(D)×19mm(H) |
| Weight: | 535g | Power Supply: | Input: AC100~240V 50/60Hz Output: DC 12V/2.5A(US/EU Standard, CE/FCC/UL Certified) |
| Power Consumption: | 11.04W | ||
| Highlight: | 4x4 Matrix HDMI Switcher,18Gbps Matrix HDMI Switcher,4x4 HDMI Seamless Matrix Switcher |
||

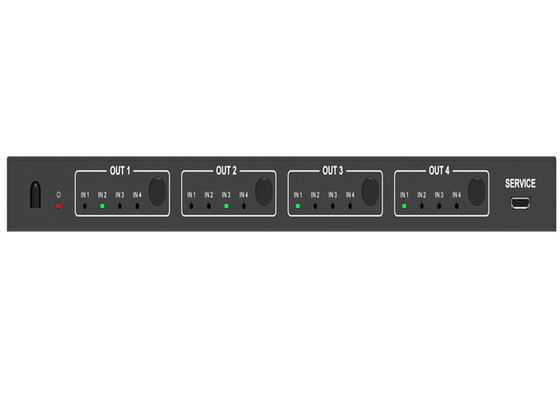

Micro USB 18Gbps 4x4 Matrix HDMI Switcher IR Receiver Window

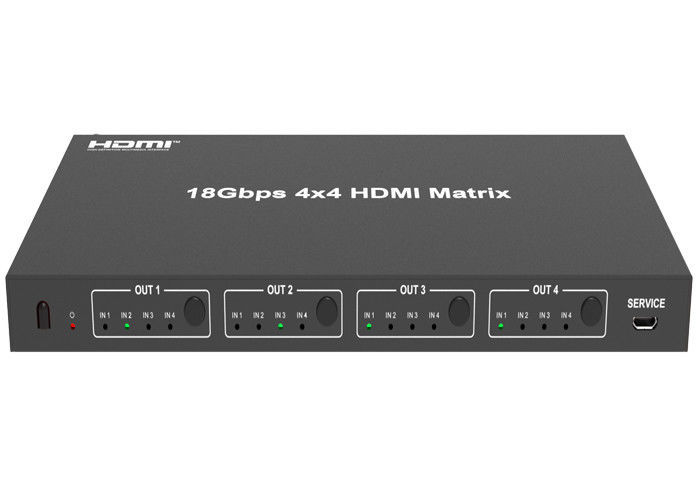

18Gbps 4x4 HDMI Matrix switcher
1. Introduction
The 4x4 HDMI Matrix supports the transmission of video signal (up to 4K2K@60Hz YCbCr 4:4:4) with multichannel digital audio from up to four
high definition sources to up to four HDMI outputs. Each output supports downscaler functionality. It can display the same or different screen on four displays (the user can choose the display screen for any signal source). Also, the product has distribution mode and switching mode.
2. Features
☆ HDCP 2.2 compliant
☆ Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
☆ HDR, HDR10, HDR10+, Dolby Vision passthrough
☆ Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
☆ Support 4K -> 1080P Downscaler
☆ Support advanced EDID management
☆ Flexible control via panel or IR remote control
3. Package Contents
① 1× 4×4 HDMI Matrix
② 1× 12V/2.5A Power Adapter
③ 1× Matrix IR Remote Control
④ 1× User Manual
⑤ 2× Mounting Ears
4. Specifications
|
Technical |
|
|
HDCP Compliant |
HDCP 2.2 / 1.x |
|
Video Bandwidth |
594MHz / 18Gbps |
|
Video Resolution |
480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
|
Color Space |
RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
|
Color Depth |
8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
|
HDMI Audio Formats |
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio |
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
|
Connection |
|
|
Inputs |
4×HDMI Type A [19-pin female] 1×IR Receiver Window 1×Micro USB |
|
Outputs |
4×HDMI Type A [19-pin female] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
220mm(W)×205mm(D)×19mm(H) |
|
Weight |
535g |
|
Power Supply |
Input: AC100~240V 50/60Hz Output: DC 12V/2.5A(US/EU standard, CE/FCC/UL certified) |
|
Power Consumption |
11.04W |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
5. Application Example
