1. LCD Video Wall splitter Controller kit Introduction:

With 9 HDMI outputs, it can support max 9 TVs splicing display.The input and output video resolution max support 1920*1080@60Hz, and the audio signal also will synchronize with output video.
You can control it easily via remote, or RS232 control software.

2.LCD Video Wall splitter Controller kit Function Introduction:

2.1 Edge blanking function

Without edge blank function,all joint display unit have frame gap,which make image pull rip up in vision and feeling unnatural;Image more natural and lively without transformation and draw after edge blank process.Following are comparison diagram;

Without edge blanking function After edge blanking process

2.2 USB transmit function

Product can support USB transmit and joint function.After finishing LCD joint basic function,user can set merely video or image joint pattern play.It's simple and useful,no need extra allocation a computer or other broadcast equipment,only we need to do is insert a U disk at USB interface in our product multi-sceen process.

• USB can support common video,image,MP3,TXT document;
• Can play select video or unselect
• All video can support play in order or cycle,pause,speed,program list

2.3 Key Function

• Multiple splicing functions with 9 HDMI outputs (3×3, 2×4, 4×2)
• Multiple video input signal with 1 HDMI, 1 DVI, 1 VGA, 1 USB
• Support mirror function
• Support edage mask function
• Support RS232 and remote control

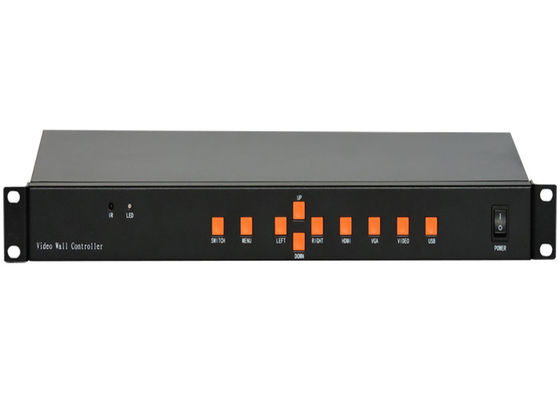

Case key press of IR 3X3 LCD Video Wall splitter Controller kit with RS232 Remote Case Key Control  :

2.4 Remote control function

Remote control is exclusive customization for ,multi-screen processor's each function is completely in conformity with remote keying and market can't buy it.Remote cotroller adopt super-sensitive design,so it's distance attainability 7 to 10 meters,and it can fulfill all functions of multi-screen processor,such as settings,switch,adjust.As the following picture shows:

 Using Application diagram of LCD Video Wall splitter Controller kit :
