Product Details:
|
| Resolution: | Up To 1920*1080@60Hz | Power: | Input：DC 12V3A |
|---|---|---|---|
| Dimension (package): | 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) | Weight: | 4 Port: 1.6 Kg 5~10 Port: 2.5 KG |
| Product Name: | 2x2 3x3 LCD Video Wall Displays Controller Systems | Warranty Time: | 1 Year |
| Highlight: | 2x4 LCD Video Wall Controller,2x3 LCD Video Wall Controller,2x4 Video Wall Controller |
||

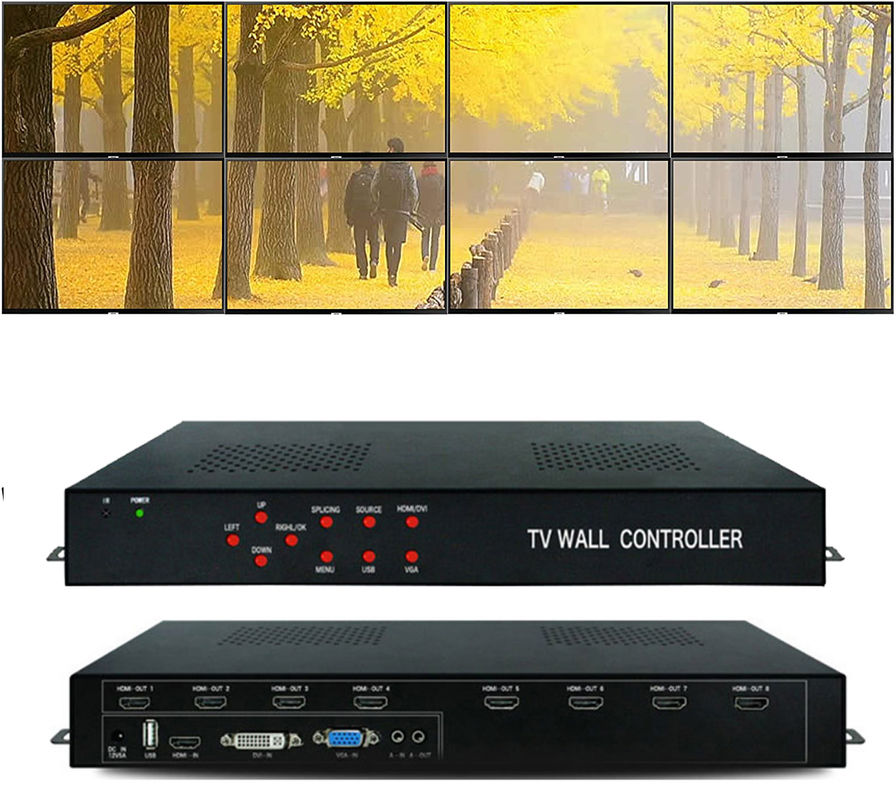

2x2 3x3 LCD Video Wall displays Controller systems
Description:
2x2 3x3 LCD Video Wall displays Controller systems, along with Digital and Analog audio out, and HDMI loop out giving you the ability to cascade controllers and create gigantic eye catching Video Walls in 3x4, 4x5, 5x5 all the way up to 10x10 configurations.
With this 4K Video Wall Controller you will get images almost 4 X clearer and sharper then a typical 1080p Video Wall Controller giving you the best possible image over your 9 displays.
FEATURES:
Support Also control with front panel button, Remote Control.
Support SPDIF and Analog audio extraction.
Support 1U rack design ,easy instalment.
Support DC 12V3A power supply.
Support Unit size:420mm(L)x243mm(W)x60mm(H).
Specification of the 2x2 3x3 LCD Video Wall displays Controller systems:
| Name | Specification |
| Input signal | |
| VGA |
HD15 interface and link with 1 audio interface of 3.5 |
| HDMI | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
| Video | Automatic identification the syetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5 |
| USB |
Standard interface of 2.0,can insert U disk,embed audio; |
| Output signal | |
| HDMI interface |
4 HDMI output,support joint pattern of 2*2,1*4,4*1; |
| Audio | 3.5 Audio interface,support left and right channels and stereo,AV signal switch synchronously |
| others | |
| Control mode | RS232,Remote ,case key |
| Power supply | AC: 100 to 240 V |
| Joint pattern | Quad standard joint,single machine customize joint of 2 to 25 |
| Power | 20W |
| Case size | |
| Dimensions(1U) | 1U 19 inch standard crate,420mm(L)x243mm(W)x60mm(H). |
| Weight(1U) | 2.5KG |
| Product name | 2x2 3x3 LCD Video Wall displays Controller systems |

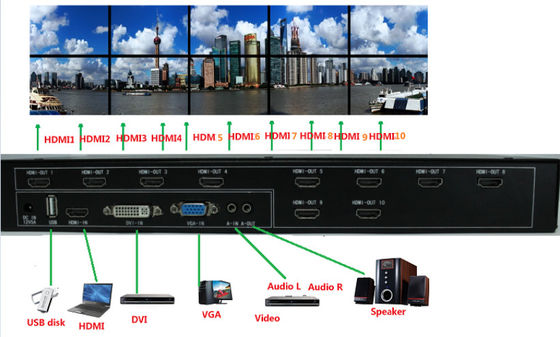

DIAGRAMS of the 2x2 3x3 LCD Video Wall displays Controller systems:
