Product Overview
The VINCAN M Series 1-in-12-out HDMI Video Wall Controller is a professional multi-screen video wall processor designed to distribute a single high-resolution video source across up to 12 HDMI displays.
Featuring one HDMI input, one DisplayPort input, and 12 HDMI outputs, this rack-mounted video wall controller is suitable for large LCD video walls, command centers, commercial digital signage, exhibition displays, and professional AV installations.
The DisplayPort input supports ultra-high resolutions up to 5760×3240@30Hz and 3840×2160@60Hz, providing flexible source compatibility for large-format and ultra-wide display applications.
Unlike conventional HDMI splitters that duplicate the same image on every screen, the VINCAN M Series processes a single source image into multiple display sections, allowing several LCD screens to function as one larger visual canvas.
With custom resolution support, pixel-to-pixel display processing for compatible layouts, bezel compensation, 180-degree image rotation, and RS232 control, the controller provides a flexible foundation for multi-screen AV projects.
Key Features
1. Twelve HDMI Outputs for Large Video Walls
The controller provides 12 HDMI outputs for connecting up to 12 compatible display devices. Key capabilities include:
- 1 HDMI input and 1 DisplayPort input
- 12 HDMI display outputs
- Multi-screen image splitting and scaling
- Customizable video wall arrangements
- Support for different display orientations and aspect ratios
- Integration with compatible LCD displays and projectors
The 12-output configuration provides additional screen capacity compared with standard 2x2 or 3x3 video wall controllers. It is suitable for projects that require a larger continuous display area from a single video source.
2. Ultra-High-Resolution DisplayPort Input
The VINCAN M Series supports DisplayPort 1.2 input for high-resolution and ultra-wide video applications. Documented input capabilities include:
- 3840×2160@60Hz
- 5760×3240@30Hz
- Custom input resolutions for compatible display configurations
These capabilities allow system integrators to select suitable source resolutions for different video wall layouts. The controller is particularly useful when the incoming image has a non-standard aspect ratio or contains detailed computer-generated graphics.
3. Pixel-to-Pixel Display and Custom Resolution Support
Pixel-to-pixel processing helps maintain image clarity and proportions when the source resolution matches the target video wall arrangement. The controller supports custom input resolution settings for compatible configurations. Benefits include:
- Pixel-to-pixel image mapping for supported layouts
- Reduced unnecessary image stretching
- Preservation of image proportions
- Flexible handling of ultra-wide content
- Improved presentation of detailed graphics and dashboards
The exact pixel-to-pixel configuration depends on the source resolution, output resolution, and selected display arrangement.
4. Flexible Video Wall Layouts
The M Series supports different video wall arrangements to accommodate horizontal, vertical, and rectangular display installations.
For the 12-output model, layout selection can be adapted to the project's screen count and physical installation requirements, subject to supported configuration modes. This flexibility is useful for commercial displays, monitoring environments, and installations that do not follow conventional 16:9 screen arrangements.
5. Bezel Compensation for Seamless-Looking Video Walls
The built-in bezel compensation function helps improve image continuity across multiple LCD screens.
By compensating for the physical borders between adjacent displays, the controller helps prevent visual elements from appearing stretched or misaligned at screen boundaries. This feature is particularly useful for large LCD video walls where visible bezels can affect the overall presentation.
6. 180-Degree Image Rotation
The controller supports 180-degree image rotation for compatible display installations. This feature allows system integrators to use alternative screen orientations when designing multi-screen display systems.
7. RS232, IR and Front-Panel Control
Multiple control options are available:
- RS232 serial control
- IR remote control

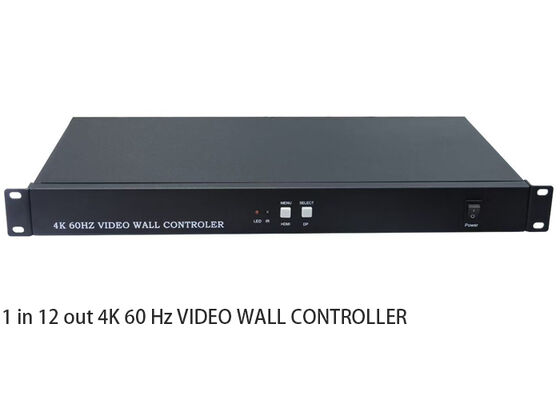

- Front-panel buttons
RS232 connectivity allows integration with compatible AV control platforms. Local front-panel operation provides convenient access to basic configuration functions.
8. Professional 1U Rack-Mount Design
The controller features a metal 1U rack-mount enclosure designed for professional AV equipment installations.

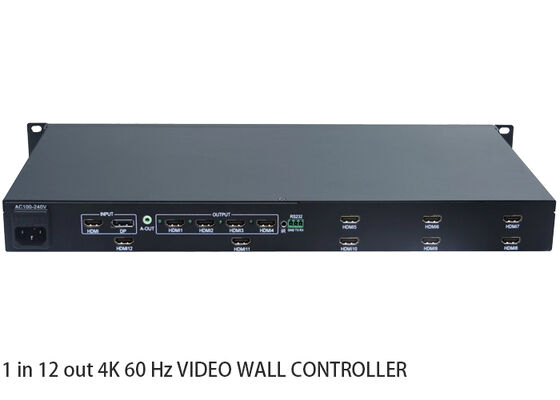

The rear panel provides HDMI and DisplayPort input connections, 12 HDMI outputs, RS232 control, and analog stereo audio output. The rack-mount form factor is suitable for centralized equipment cabinets, control rooms, and commercial AV systems.
Technical Specifications
| Product Series |
VINCAN M Series |
| Product Type |
HDMI Video Wall Controller |
| Input/Output Configuration |
1 in 12 out |
| HDMI Input |
1 × HDMI |
| DisplayPort Input |
1 × DP 1.2 |
| DP Input Resolution |
Up to 5760×3240@30Hz; 3840×2160@60Hz |
| HDMI Outputs |
12 × HDMI |
| Maximum Documented HDMI Output Resolution |
1920×1200@60Hz |
| Additional Output Resolutions |
1920×1080@60Hz, 1280×800@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| Custom Resolution |
Supported |
| Pixel-to-Pixel Display |
Supported with compatible configurations |
| Bezel Compensation |
Supported |
| Image Rotation |
180° |
| Control Methods |
RS232, IR, front-panel buttons |
| Audio Output |
3.5 mm stereo |
| Color Depth |
24-bit |
| Power Input |
AC 100-240V |
| Chassis |
1U rack-mount metal enclosure |
Applications
1. Command Centers and Control Rooms
The 12-output HDMI video wall controller can be used to build large multi-screen displays for operational dashboards, control room visualization, and centralized information presentation. A single computer or compatible video source can be displayed across multiple LCD screens.
2. Security Monitoring Video Walls
Create a large display surface for surveillance dashboards and NVR outputs. The controller processes the incoming HDMI or DisplayPort image and distributes it across the connected screens. Individual IP camera decoding must be performed by the connected computer, NVR, or other compatible source equipment.
3. Commercial Digital Signage
Combine multiple LCD screens into a large-format advertising display for shopping malls, retail stores, corporate showrooms, and public information systems.
4. Exhibition and Event Displays
Create large visual installations for exhibition halls, trade shows, museums, and event venues. Custom resolutions and flexible display arrangements help accommodate different content formats and installation requirements.
5. Data Visualization and Corporate Dashboards
Display large computer-generated graphics, business intelligence dashboards, and operational data across multiple screens. The controller is suitable for projects where a single high-resolution source needs to be presented on a larger display surface.
Frequently Asked Questions
Q1: How many displays can the controller support?
The 1-in-12-out model provides 12 HDMI outputs for connecting up to 12 compatible displays.
Q2: Does the controller support 4K60 input?
The DisplayPort input supports 3840×2160@60Hz according to the technical documentation. HDMI input 4K60 compatibility should be confirmed for the updated hardware revision.
Q3: What is the maximum DisplayPort input resolution?
The documented maximum DP input resolution includes 5760×3240@30Hz.
Q4: Does the controller support custom resolutions?
Yes. The M Series supports custom input resolution settings for compatible video wall layouts.
Q5: Can it be integrated with a central AV control system?
Yes. The controller supports RS232 serial control, as well as IR remote control and front-panel operation.
Q6: Is this an HDMI matrix switcher?
No. This is a video wall processor designed to divide one source image across multiple displays. It is not a multi-input matrix switcher for independently routing different sources to each output.
Q7: Can it display multiple IP camera streams directly?
The controller does not specify built-in IP camera decoding. Camera images can be displayed when supplied as a compatible video signal from an NVR, computer, or other source device.
