1-in-9-out HDMI Video Wall Controller with 5760x3240@30Hz DP Input and RS232 Control for 3x3 Video Wall Processor

The controller features nine HDMI outputs, allowing one video source to be displayed across nine connected screens. Key capabilities include:

• 9 HDMI display outputs
• 3x3 LCD video wall configuration
• Multi-screen image splitting and scaling
• Flexible video wall layouts within the nine-output configuration
• Support for compatible LCD displays and projectors

The 3x3 configuration is particularly suitable for monitoring centers, corporate information displays, and large commercial video walls.

The VINCAN M Series supports DisplayPort 1.2 input for high-resolution and ultra-wide video wall applications. Supported DP input resolutions include:

• 3840*2160@60Hz
• 5760*3240@30Hz
• Custom input resolutions for compatible video wall layouts

For a 3x3 video wall using nine 1920*1080 displays, a 5760*3240 input provides the combined pixel resolution required for pixel-to-pixel display. This makes the controller especially useful for large dashboards, high-resolution graphics, and visualization applications where preserving image detail is important.

Pixel-to-pixel processing is one of the key advantages of the M Series. With compatible source timing and display configurations, the controller can map high-resolution content across multiple screens while maintaining the original image proportions. Benefits include:

• Pixel-to-pixel display with compatible resolutions
• Reduced image stretching and distortion
• Custom resolution support
• Improved presentation of detailed graphics and text
• Flexible handling of non-standard aspect ratios

This capability is valuable for projects where image geometry and content clarity are more important than simple screen duplication.

The controller supports bezel compensation to improve the visual continuity of images across adjacent displays. By accounting for the physical borders between LCD panels, bezel compensation helps prevent objects and lines from appearing unnaturally stretched at screen boundaries. The result is a more natural presentation across the entire video wall.

The built-in 180-degree image rotation function allows individual display images to be flipped for compatible installations. This is useful when LCD panels are installed in alternating orientations to reduce the visible gap between adjacent screens.

The VINCAN 3x3 HDMI Video Wall Controller offers multiple control options for different installation requirements.

• RS232 serial control
• Infrared remote control
• Front-panel control buttons

RS232 connectivity makes the controller suitable for integration with compatible professional AV control systems.

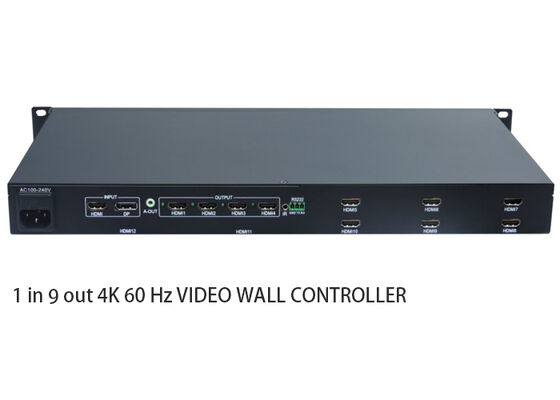

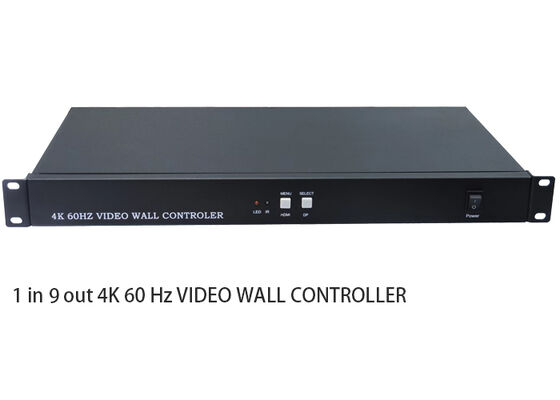

The controller uses a 1U rack-mount metal enclosure with integrated mounting ears. This design is suitable for equipment racks, control rooms, AV cabinets, and centralized signal-processing installations. The rear panel includes HDMI and DP inputs, nine HDMI outputs, RS232 connectivity, and a 3.5 mm stereo audio output.

Build a 3x3 display wall for presenting large dashboards, monitoring interfaces, geographic information, and operational data from a single high-resolution source. The controller is suitable for centralized visualization where one source image needs to extend across nine displays.

Create a large display surface for a computer or NVR output containing multiple surveillance camera views. The controller divides the incoming video image across nine screens. Individual IP camera decoding is handled by the connected source equipment, not by the video wall controller itself.

Combine nine LCD displays into a large advertising screen for shopping malls, retail stores, showrooms, and commercial spaces.

Present panoramic images, promotional videos, and high-resolution exhibition content on a large 3x3 video wall.

Display complex dashboards, business intelligence graphics, and other high-resolution computer content across multiple screens.
