Product Overview
The VINCAN M Series 1-in-4-out HDMI Video Wall Controller is a compact video wall processor designed to distribute a single high-resolution video source across up to four HDMI displays.
Equipped with HDMI and DisplayPort inputs, four HDMI outputs, and RS232 control, this controller provides a flexible solution for LCD video walls, digital signage, exhibition displays, and professional AV installations.
Unlike conventional HDMI splitters that duplicate the same image on every screen, this video wall processor divides one source image into multiple sections to create a larger, continuous display.
The DisplayPort input supports resolutions up to 5760×3240@30Hz and 3840×2160@60Hz, with custom resolution options for ultra-wide and non-standard display layouts.
With pixel-to-pixel display capabilities, bezel compensation, and multiple control methods, the VINCAN M Series helps AV integrators build professional multi-screen display systems.
Key Features
High-Resolution HDMI and DisplayPort Inputs
The controller features one HDMI input and one DisplayPort input for connecting computers, media players, and other compatible video sources.
- 1 × HDMI input
- 1 × DisplayPort 1.2 input
- DP input up to 3840×2160@60Hz
- DP ultra-high-resolution input up to 5760×3240@30Hz
- Custom resolution support
- Four HDMI display outputs
The flexible input options make the controller suitable for both conventional 4K video content and specialized ultra-wide display applications.
Flexible 1×4 Video Wall Configurations
Create a larger display using up to four HDMI screens. Supported layout options include:
- 2×2 video wall
- 1×4 horizontal video wall
- 4×1 vertical video wall
- 1×2 and 2×1 arrangements
- 1×3 and 3×1 arrangements
These configurations allow system integrators to adapt the display arrangement to different installation environments. For projects requiring additional displays, other models in the VINCAN M Series offer expanded configurations.
Pixel-to-Pixel Display Without Image Stretching
The controller supports pixel-to-pixel video wall processing with compatible source resolutions and display configurations. By matching the source resolution to the overall video wall layout, the system can maintain image proportions without unnecessary stretching or distortion.
This is particularly useful for displaying detailed dashboards, large-format graphics, panoramic images, and high-resolution computer content. Custom resolution settings provide additional flexibility for non-standard video wall dimensions.
Bezel Compensation and 180° Image Rotation
The built-in bezel compensation function helps correct visual discontinuities caused by the physical borders between adjacent displays. The controller also supports 180-degree image rotation for compatible screen arrangements.
These functions help achieve a more natural and continuous visual presentation across multiple LCD panels.
Multiple Control Options for AV Integration
The VINCAN 1×4 HDMI Video Wall Controller supports several convenient control methods:

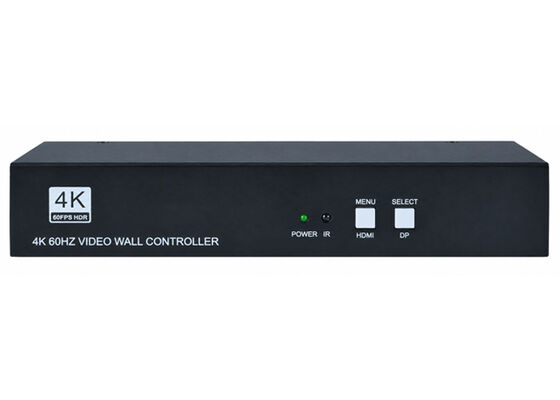

- Front-panel buttons
- IR remote control
- RS232 serial control
RS232 connectivity allows the controller to be integrated into compatible professional AV control systems. The front-panel controls provide straightforward local operation for installation and configuration.
Compact Design for Professional Installations
The compact metal enclosure is designed for integration into professional AV environments. Its space-saving form factor is suitable for equipment cabinets, display installations, and other applications where installation space is limited.

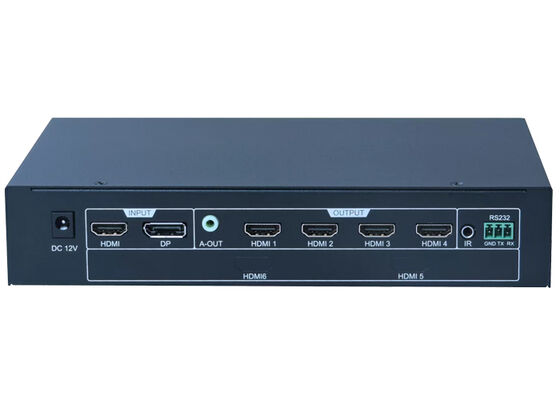

A DC 12V power input and clearly labeled signal connectors simplify system wiring.
Technical Specifications
| Product Series |
VINCAN M Series |
| Product Type |
HDMI Video Wall Controller |
| Configuration |
1-in-4-out video wall processor |
| HDMI Input |
1 × HDMI |
| DisplayPort Input |
1 × DP 1.2 |
| DP Input Resolution |
Up to 3840×2160@60Hz; 5760×3240@30Hz |
| HDMI Outputs |
4 × HDMI |
| HDMI Output Resolution |
Up to 1920×1200@60Hz |
| Additional Output Resolutions |
1920×1080@60Hz, 1600×900@60Hz, 1280×800@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| Display Configurations |
2×2, 1×4, 4×1, 1×3, 3×1, 1×2, 2×1 |
| Custom Resolution |
Supported |
| Image Rotation |
180° |
| Bezel Compensation |
Supported |
| Control Methods |
Front-panel buttons, IR, RS232 |
| Analog Audio Output |
3.5 mm stereo |
| Power Supply |
DC 12V |
| Housing |
Compact metal enclosure |
Note: HDMI input 4K60 compatibility and exact supported custom-resolution timings should be confirmed for the updated M Series hardware revision before final publication.
Applications
Digital Signage and Retail Displays
Create large-format promotional displays by combining multiple LCD screens into a single video wall. Suitable for retail stores, shopping malls, commercial showrooms, and advertising installations.
Control Rooms and Monitoring Centers
Display large computer dashboards, operational information, and monitoring interfaces across multiple screens. The controller is suitable for projects requiring a continuous display of one high-resolution source.
Exhibition Halls and Trade Shows
Build horizontal, vertical, and custom-aspect-ratio video walls for exhibitions, product demonstrations, and visitor information displays.
Corporate Presentation Systems
Extend presentations, dashboards, and other visual content across multiple displays in corporate meeting spaces, training facilities, and demonstration rooms.
Ultra-Wide Display Applications
Use supported custom input resolutions to create panoramic visual presentations across multiple screens. This is particularly useful when standard 16:9 display formats do not meet project requirements.
Frequently Asked Questions
Q1: What is the difference between a video wall controller and an HDMI splitter?
An HDMI splitter duplicates the same image on multiple displays. A video wall controller divides one source image into separate sections, allowing multiple screens to form one larger display.
Q2: Can this controller create a 2×2 video wall?
Yes. The four HDMI outputs can be used to build a 2×2 video wall with four compatible displays.
Q3: Does the controller support DisplayPort input?
Yes. The controller includes one DP 1.2 input, supporting high-resolution signals including 3840×2160@60Hz and 5760×3240@30Hz.
Q4: Can the controller be integrated with an AV control system?
Yes. RS232 serial control is supported, along with front-panel operation and IR remote control.
Q5: Does it support custom video wall resolutions?
Yes. Custom input resolution settings are available for compatible display configurations and ultra-wide applications.
Q6: Does 4K60 input mean every HDMI output is 4K60?
No. The controller accepts high-resolution input signals and processes them for the connected displays. The documented HDMI output resolution is up to 1920×1200@60Hz.
