VINCAN Modular Audio DSP Matrix with Open Architecture, 64x64 Network Audio and Modular I/O Cards

The VINCAN Modular Audio DSP Matrix combines open-architecture audio processing, configurable I/O cards and network audio capabilities for integrated AV installations. Its modular design allows integrators to select audio interfaces to suit the project, while customizable control interfaces and built-in Lua scripting support tailored system operation.

The supplied series specifications list 64 × 64 network audio capability and eight audio I/O card slots. Chassis format, installed cards and available functions should be confirmed for the selected model.

Configure the audio DSP matrix to suit the routing, processing and control requirements of the installation. The open architecture supports project-specific system design.

Select compatible audio input, output and USB interface cards to match connected equipment. The modular platform supports centralized hardware management and flexible I/O configuration.

The series specification lists 64 × 64 network audio capability for multi-channel audio distribution. Confirm the network audio protocol and compatibility with other devices when selecting the configuration.

Supports Gigabit network transmission backup and active/standby operation for installations requiring redundancy. The backup arrangement depends on the selected system configuration.

Supports the addition of independent acoustic echo cancellation modules for conferencing applications. AEC module requirements should be specified during system configuration.

Edit the graphical room control interface to suit the installation and provide users with controls relevant to their meeting space or audio system.

Built-in Lua scripting provides options for extending control functions and customizing system behavior to match project requirements.

The integrated audio player supports WAV and MP3 files, scheduled playback and 64 GB of media storage for applications requiring stored audio content.

Supports an AC/DC dual-power redundancy arrangement. Confirm the power connections and required supply configuration for the selected chassis.

Provides 2 × 2 USB audio I/O at 48 kHz / 24-bit. Supports USB hot-plugging, with control and configuration through software.

The CO AI4 offers adjustable input gain from 0 to 54 dB in 6 dB steps. Listed specifications include 118 dB dynamic range, 5.5 kΩ input impedance and THD+N of ≤0.001%. Connections use a 12-pin, 3.5 mm detachable terminal block.

The CO AO4 provides analog output connectivity with a listed dynamic range of 118 dB, 102 Ω output impedance and THD+N of ≤0.001%. Connections use a 12-pin, 3.5 mm detachable terminal block.

Card selection and quantities depend on the required audio connections and chassis compatibility. USB hot-plug support does not indicate that internal I/O cards can be replaced while the chassis is powered.

These are series reference specifications. Actual I/O capacity, card availability and supported features depend on the selected model and installed configuration.

Please specify your required analog inputs, analog outputs, USB audio connections, network audio protocol, AEC processing and redundancy requirements when requesting a quotation.

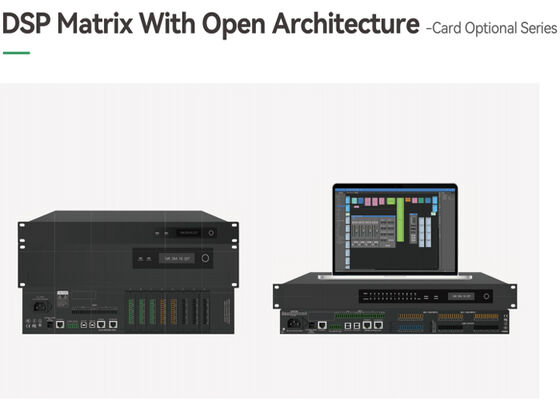

Product images show example chassis and application configurations. Computers, optional cards and other accessories are included only when specified in the confirmed quotation.
