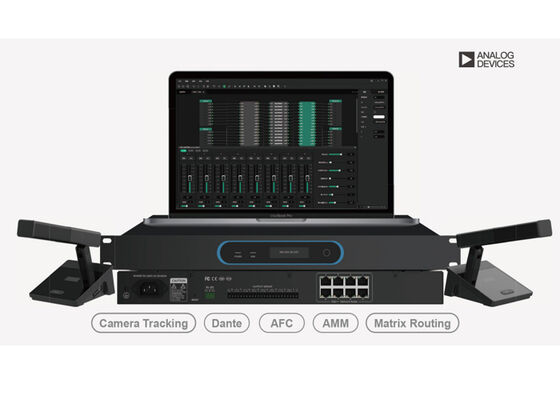

VINCAN NMC100D Network Audio Mixing Console with 32x32 Dante Channels, Automatic Microphone Mixing and 8 PoE++ Interfaces

The VINCAN NMC100D Network Audio Mixing Console combines Dante network audio, automatic microphone mixing, matrix routing and centralized audio management in a rack-mounted unit. Designed for small and medium-sized conference applications, it helps integrators configure microphone signals and audio routing through a graphical management interface.

Featuring 32 * 32 Dante channels, eight analog audio outputs and eight PoE++ RJ45 interfaces, this conference audio processor supports integration with compatible network audio devices and room sound systems.

Integrate compatible Dante audio equipment through 32 input and 32 output network audio channels. The NMC100D Dante audio mixer supports flexible signal distribution for conference and meeting systems.

Configure the audio system through a drag-and-drop software interface. Centralized management simplifies signal routing and microphone adjustment during setup and operation.

ATS automatic threshold sensing and automatic mixing help manage multiple microphone signals in meeting environments. Independent microphone adjustment supports more consistent speech levels across the system.

Route audio sources to the required destinations to suit the room layout and system design. Eight analog audio outputs provide connections to downstream audio equipment.

Supports control protocol output following microphone voice activation for integration with compatible camera tracking systems. Camera and control protocol compatibility should be confirmed during project configuration.

Supports dual-host hot backup for installations requiring redundancy. This function requires an appropriately configured two-host system.

Eight RJ45 PoE++ interfaces provide network connectivity and power for compatible devices. The specified maximum single-port PoE power is 95 W; the total available power budget must be confirmed when planning connected devices.

Built around an ADI SHARC 21569 processor, the NMC100D supports 48 kHz / 24-bit audio processing, with a specified system delay of less than 4 ms.
