Mini 4 Channel Sdi Multiviewer Quad 4 Channel 3g Sdi Multiviewer

Large Image : Mini 4 Channel Sdi Multiviewer Quad 4 Channel 3g Sdi Multiviewer

Product Details:

Place of Origin:	Mainland China
Brand Name:	VINCAN
Certification:	CE,FCC and RoHs
Model Number:	WL-MVP9104

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Carton box and standard export package for Mini 4 Channel Sdi Multiviewer Quad 4 Channel 3g Sdi Multiviewer
Delivery Time:	2-3 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	100 pcs per week

Contact Now

Mini 4 Channel Sdi Multiviewer Quad 4 Channel 3g Sdi Multiviewer

Description

SDI Input Connector:	BNC Complies With IEC169-8	AUDIO Input:	1 Set Of XLR Balanced Audio Cannon Input/1 Channel Analog Audio Input
Weight:	2.1KG	HDMI Output Signal:	Standard HDMI Signal
Output Signal:	HD-SDI HD Serial Digital Video Signal	SDI Output Connector:	BNC Complies With IEC169-8
Power Supply Range:	100-240V/AC 50/60Hz	Response Frequency:	550-3.6KHz, < +/-3dB
Highlight:	HDMI multiviewer with XLR audio input , HD-SDI output HDMI multiviewer , HDMI multiviewer for high humidity

Features:

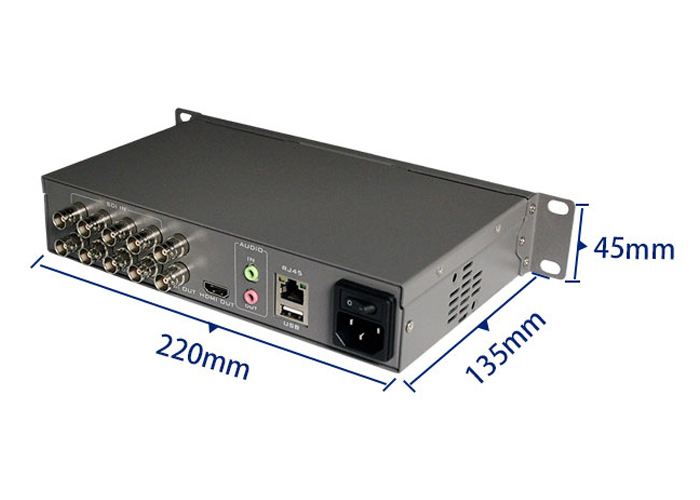

1. Half 1U body design, can be a single device on the rack, or two devices can be assembled into a

standard 1U;

2. Support single screen full screen, PIP, POP, multiple 3-screen division, 4- screen division;

3. Support LCD status display (multi-screen split mode, channel signal detection alarm, etc.);

4. Support character overlay, size and position color can be customized;

5. Support LCD status display (multi-screen split mode, current channel signal status, etc.);

6. Input OSD, audio column display;

7. Output port: SDI × 4 loop output; SDI × 2 / HDMI × 1 multi-screen split output.;

8. The output supports multiple resolution switching.;

9. Input 3G/HD/SD SDI Adaptive;

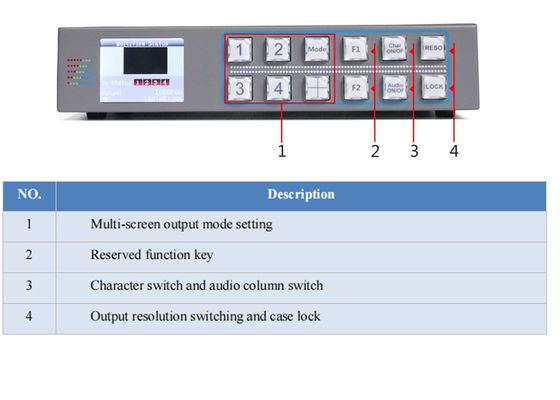

10. Support control panel shortcut control;

11. Support network, RS422 control;

12. Support network upgrade system function;

13. Special features can be customized;

Technical Parameters:

HDMI Output Rate	270Mbps~2.97Gbps
SDI Input Rate	143Mbps~2.97Gbps
SDI Output Impedance	75Ω
SDI Input Connector	BNC complies with IEC169-8
Working Humidity	20%~70%RH
SDI Input Reflection Loss	>15dB 5MHz~3GHz
SDI Output Reflection Loss	>15dB 5MHz~3GHz
Output Signal	HD-SDI HD serial digital video signal
SDI Input Impedance	75Ω
HDMI Output Signal	Standard HDMI signal

Packing and Shipping:

Product Name: HDMI Multiviewer

Description: Enjoy seamless multitasking with this HDMI multiviewer that allows you to display multiple sources on one screen.

Package Includes: HDMI Multiviewer, Power Adapter, User Manual

Features: - Supports up to 4 HDMI input sources - Customizable display layouts - Remote control for easy operation - High-definition output resolution

Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery Time: 3-5 business days - Shipping Cost: Free
