HDMI 2x1 MultiViewer With PIP

1. Introduction

This product is a high performance 2 by 1 Multi-Viewer. It supports two High definition input source display on one screen.

As a Multi-Viewer, it can display on one screen in 4 modes.

2. Features

1. Compliant with HDMI 1.3a,HDCP 1.2；

2. Supports multiplexed HDMI 2-input and 1-output and 4 display modes；

3. Supports up to 1080p High Definition resolution；

4. Support scaler up, scaler down function；

5. Support multi output resolution；

6. Support digital audio format LPCM/AC3/DTS

3. Package

• HDMI 2x1 Multi-Viewer ------------------------------------------------------------------ 1PCS
• 5V1A DC Power adapter ----------------------------------------------------------------- 1PCS
• Operation Manual ------------------------------------------------------------------------- 1PCS

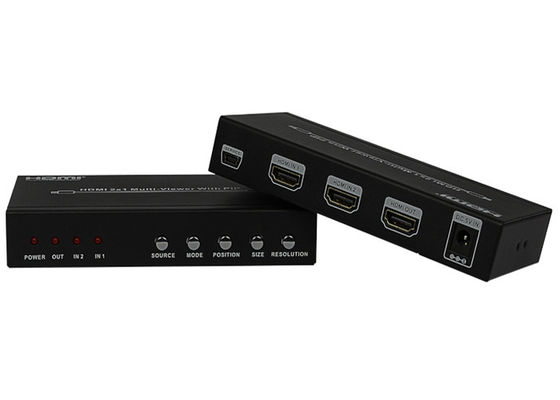

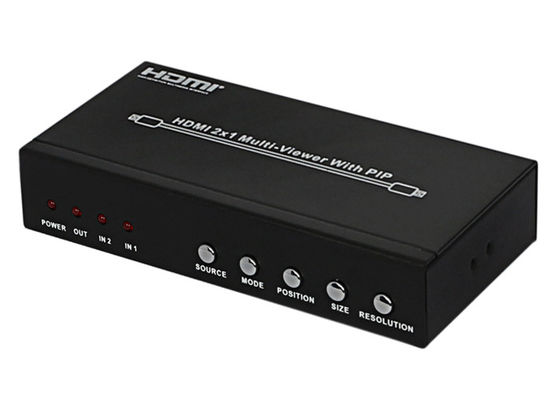

4.Produicts' picture for HDMI 2x1 Multi-Viewer With PIP:

5. Specifications

1.Video Bandwidth 225MHz[6.75Gbps]

2.Input Ports 2 × HDMI (Female type)

3.Output Ports 1 × HDMI (Female type),

4.Audio output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1

5.Input Resolution 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,1080i50/60Hz,

1080p24/30/50/60Hz,800x600@60, 1024x768@60,1280x720@60,1920x1080@60;

Output Resolution 1080p,1080i,720p,1024x768,1360x768

6.ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)

7. Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)

8. Dimensions 70 mm (W)×140mm (D)×25 mm (H)

9. Weight 300 g

10. Chassis Material Metal

11. Silkscreen Color Black

12. Operating Temperature 0 °C~40 °C/ 32 °F~104 °F

13. Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F

14. Relative Humidity 20~90 % RH (non-condensing)

15. Power Consumption (Max) 10W

6. Operation controls and Functions

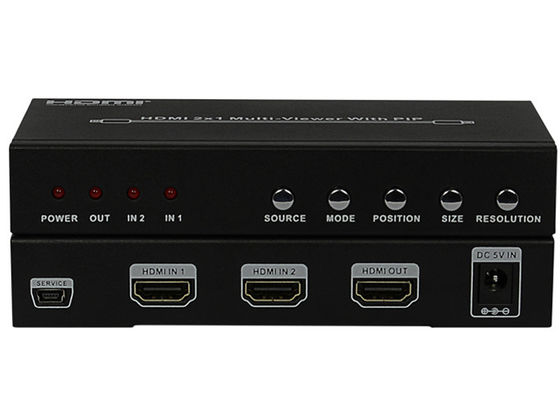

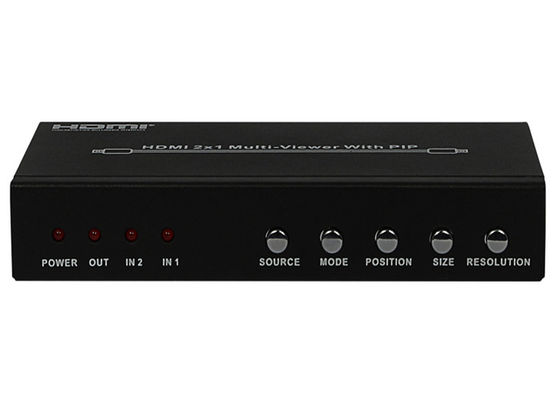

Front Panel

• POWER LED: This red LED illuminates when the device is connected with power supply.
• OUTPUT LED: This red LED illuminates when the TV plug in corresponding HDMI output

Port.

• IN2 LED: This red LED illuminates when the HDMI IN2 is selected as main image.
• IN1 LED: This red LED illuminates when the HDMI IN1 is selected as main image.
• SOURCE: Press the button to select the input source as main image, and the LED will indicate the corresponding input source.
• MODE: Press the button to select display mode. ※ See the description 1.
• POSITION: Press the button to select the position of sub image when in PIP mode.
• SIZE: Press the button to select the size of sub image when in PIP mode.
• RESOLUTION: Press the button to select the output resolution.

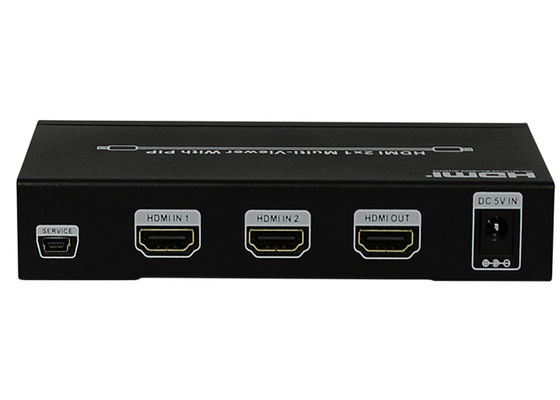

Rear Panel

• SERVICE: Connected to computer via RS232 tool, and controlled via host-computer software.
• HDMI IN1: This slot is where you connect the HDMI source output from DVD, PS3.
• HDMI IN2: This slot is where you connect the HDMI source output from DVD, PS3.
• HDMI OUTPUT: This slots is where you connect the HDTV or monitor with HDMI cable.
• DC 5V IN: Plug the 5V DC power supply into the unit and connect the adapter to AC wall outlet.

7. Description 1 Mode Introduction:

1. Mode 1: One-view mode

2. Mode 2: PIP mode

3. Mode3: POP mode A

4. Mode 4: POP mode B

8. Application Example
