Technical Parameters:
| AUDIO Input |
1 set of XLR balanced audio cannon input/1 channel analog audio input |
| Power Supply Range |
100-240V/AC 50/60Hz |
| AUDIO Output |
1 channel analog audio output |
| Control Parameter |
Local control button (front panel), Serial control RS232, Connection port RJ45 standard network interface (UDP/HTTP), Control software WINDOWS (customizable IOS/Android) |
| Product Name |

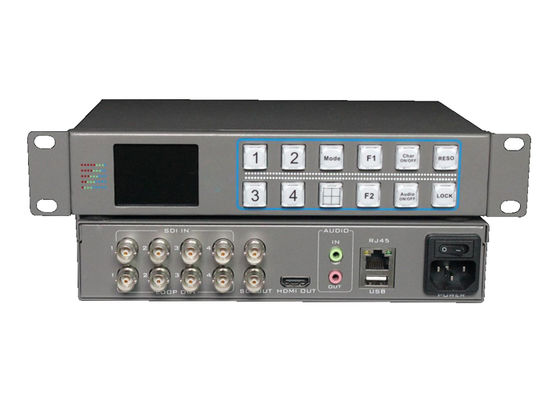

WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer |
| SDI Input Rate |
143Mbps~2.97Gbps |
| Operating Temperature |
0℃~50℃ Without Condensation |
| SDI Input Reflection Loss |
>15dB 5MHz~3GHz |
| Power Supply |
100-240V/AC 50/60Hz |
| Input Signal |
SDI HD serial digital video signal |
Description:
Winlink HD SDI 4-screen equipment case is made of iron, and the high strength of iron
improves the anti-drop, anti-shock and shock-proof ability of the whole machine, and effectively
protects the internal components of the equipment. Ultra-lightweight features make the unit easier
to transport and maintain without the need for additional equipment; it also offers unparalleled
thermal performance.

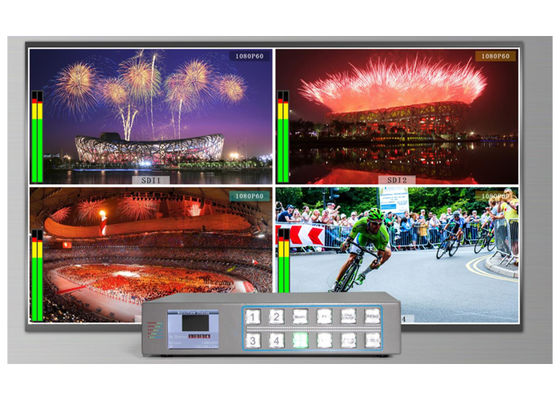

In addition to the innovation of the case, the HD SDI 4-screen W L - MVP9104 has
also been completely optimized for the interface connector. Environmentally friendly materials
with new RoHS standards are more demanding in terms of durability and environmental
protection, providing customers with more stable, cost-effective and environmentally friendly
products.
4-Ch 3g-Sdi Input Quad Screen Split Multiviewer Sdi Multiviewer 4k Sdi Switcher 4x1
