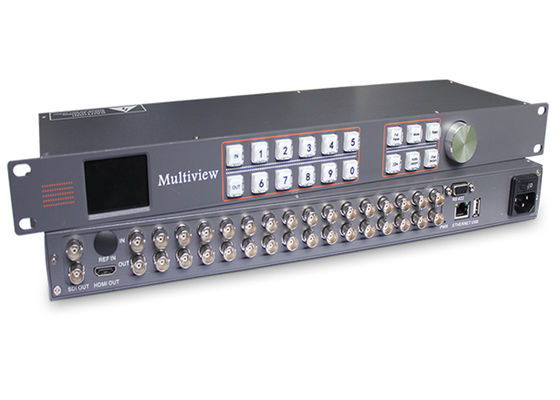

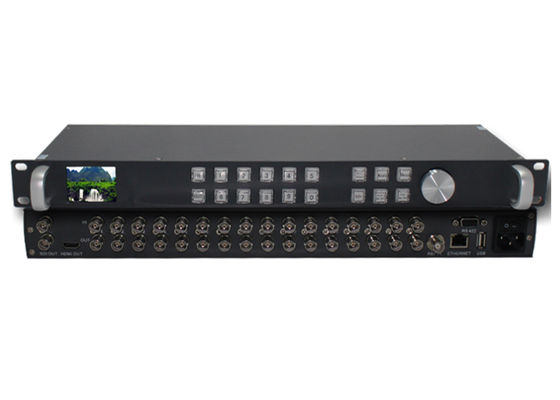

16 Input 12g-Sdi Hd Sdi Video Multiviewer Quad 4 Channel 3g Sdi Multiviewer

Large Image : 16 Input 12g-Sdi Hd Sdi Video Multiviewer Quad 4 Channel 3g Sdi Multiviewer

Product Details:

Place of Origin:	Mainland, China
Brand Name:	VINCAN
Certification:	CE ,FCC , RoHs
Model Number:	WL-9116

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	100-1000.00USD/SET
Packaging Details:	Stantard export package for 16 Input 12g-Sdi Hd Sdi Video Multiviewer Quad 4 Channel 3g Sdi Multiviewer
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets one week

Contact Now

16 Input 12g-Sdi Hd Sdi Video Multiviewer Quad 4 Channel 3g Sdi Multiviewer

Description

Ethernet Port Control:	Support	USB Port Control:	Support
RS422 Port Control:	Support	Any Screen Multi-viewer Modes:	Single Screen, 4 Screens,6 Screens,8 Screens, 9 Screens,10 Screens,16 Screens
Power Supply:	AC 100-240 V	Embedded Audio Output:	Support
Highlight:	4-channel 3G-SDI multiviewer , 3G-SDI input multiviewer , HDMI multiviewer with SDI output

Product Introduction for 16 Input 12g-Sdi Hd Sdi Video Multiviewer Quad 4 Channel 3g Sdi Multiviewer

It is a professional full-featured multi-screen Multi-viewer.

√ Support 16 channels of 3G/HD/SD-SDI input, multi-picture synthesis has 2 channels of the

same SDI output and 1 channel of HDMI output, and 16 channels of loop-out function at the

same time;

√ Built-in SDI 16X16 way matrix switching function;

√ Powerful detection alarm Video loss, black field mute alarm; audio loss, mute, audio

over/under alarm source data detection alarm;

√Rich display elements TALLY/UMD source name follower, forward/counter clock, AFD

information display,safety frame, waveform Vector;

√16 Input 12g-Sdi Hd Sdi Video Multiviewer Quad 4 Channel 3g Sdi Multiviewer;

Specification:

Ethernet port Control	Support
USB port Control	Support
RS422 Port Control	Support
UMD	Support
Tally	Support
Frame Mark	Support
Sound column	Support
Time Code	Support
GPIO	Support
Any screen Multi-viewer modes	Single screen, 4 screens,6 screens,8 screens, 9 screens,10 screens,16 screens
Power supply	AC 100-240 V
Input	16-SDI
Loop out	16-SDI
Output	SDI x 2 + HDMI x 2
Output color space	YUV422
Embedded audio output	Support
2K/4K	Output 4k, 6 G
Redundant power supply	Support
Detection alarm	Support
Signal Dectection	Support
REF frame synchronization	Support
LEVEL B Input	Support
LEVEL B Output	Support
Value for money	High

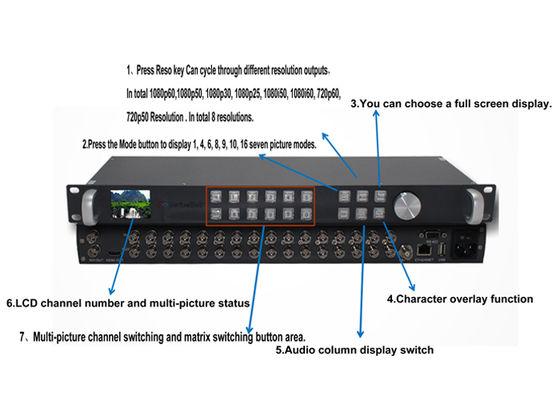

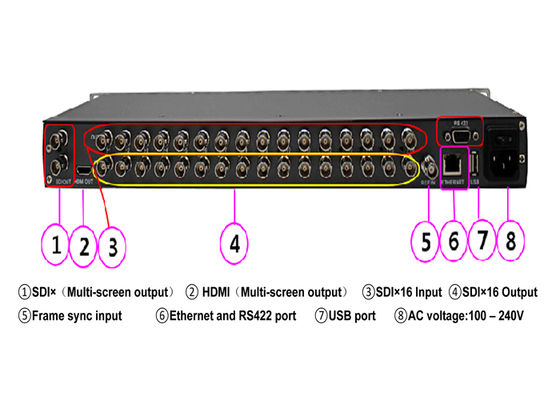

Diagram for 16 Input 12g-Sdi Hd Sdi Video Multiviewer Quad 4 Channel 3g Sdi Multiviewer:

16 Input 12g-Sdi Hd Sdi Video Multiviewer Quad 4 Channel 3g Sdi Multiviewer 0
