WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer

Large Image : WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer

Product Details:

Place of Origin:	Mainland, China
Brand Name:	VINCAN
Certification:	CE ,FCC , RoHs
Model Number:	WL-MVP9104

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	100-1000.00USD/SET
Packaging Details:	Stantard export package
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets one week

Contact Now

WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer

Description

Name:	WL-MVP9104 The 4-ch 3G-SDI Input 1-ch 3G-SDI Output Multi-viewer	SDI Input Rate:	143Mbps~2.97Gbps
Power Supply:	100-240V/AC 50/60Hz	Power Rating:	25W-150W, According To Host Type
Operating Temperature:	0℃~50℃ Without Condensation	Working Humidity:	20%~70%RH

Product Introduction

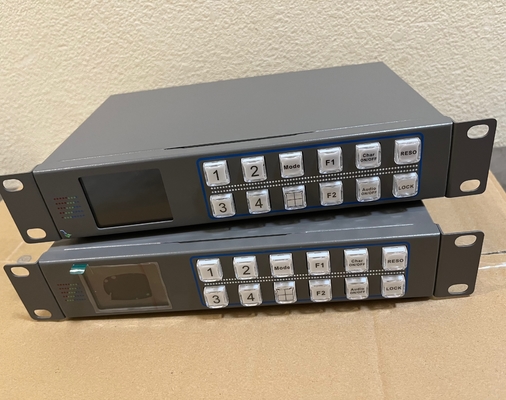

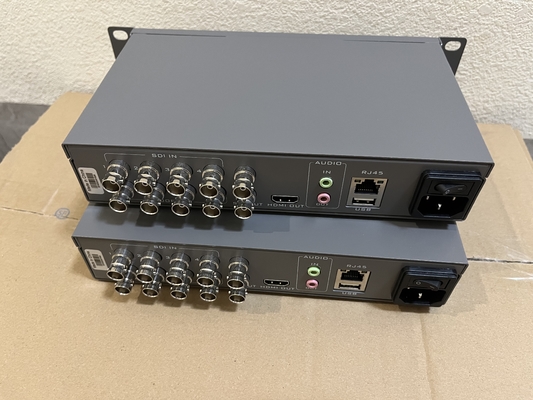

Winlink SDI 4-Screen WL-MVP9104 is a professional-grade multi-picture multi- viewer,

which supports 4-CH SDI input, 4-CH SDI loop output, 2-CH SDI multi-screen output, and

1-CH HDMI multi-screen output. The device is configured through the keypad, and supports

single-screen full-screen, PIP, POP, and four-screen segmentation.

The device supports remote network upgrade and PC software control.

WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer 0

Specification:

Name	WL-MVP9104 SDI 4- Screen Multi-viewer
SDI Input	Input Signal	SDI HD serial digital video signal
	Rate	143Mbps~2.97Gbps
	Connector	BNC complies with IEC169-8
	Reflection loss	>15dB 5MHz~3GHz
	Signal amplitude	800mV±10%
	Impedance	75Ω
	Balance	100m Belden 1694AHD
	Balance	200m Belden 8281AHD
SDI Output	Output Signal	HD-SDI HD serial digital video signal
	Connector	BNC complies with IEC169-8
	Reflection loss	>15dB 5MHz~3GHz
	Signal amplitude	800mV±10%
	Impedance	75Ω
	Up/Downtime	0.6ns±100ps
	DC offset	0V±0.5V
	Clock recovery	Auto output optional
	Overshoot	<5%
	Jitter	<0.2Ul
HDMI Output	Output Signal	Standard HDMI signal
	Rate	270Mbps~2.97Gbps
	Signal amplitude	800mV±10%(100R)
	Impedance	100Ω

AUDIO	Input	1 set of XLR balanced audio cannon input/1 channel analog audio input
	Output	1 channel analog audio output
	Response frequency	550-3.6KHz, < +/-3dB
	THD	< 3%
	S/N	> 50dB
Control Parameter	Local control	button (front panel)
	Serial control	RS232
	Connection port	RJ45 standard network interface (UDP/HTTP)
	Control software	WINDOWS (customizable IOS/Android)
	Optional components	Central control keyboard
General Parameters	Power supply	100-240V/AC 50/60Hz
	Power Rating	25W-150W, According to host type
	Size	Half 1U (standard power supply)
	Control Panel	Yes
	Weight	2.1KG
	Operating Temperature	0℃~50℃ without condensation
	Storage Temperature	-20℃~75℃
	Working Humidity	20%~70%RH
	Storage Humidity	0%~90%RH, No condensation

WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer
