Product Details:
|
| Product Name: | Fiber Optic Extender | Video Bandwidth: | 10.2Gbps |
|---|---|---|---|
| HDMI Compatible: | HDMI 1.3 | Output Port (Transmitter): | 1 X FIBER |
| Electrostatic Protection: | Human Body Model: ±8kV (air Discharge), ±4kV | Supports: | RGB, YCbCr4:4:4 4:2:2, YUV4:2:0 |
| Transmission Distance: | 2KM | Fuselage Shell: | Zinc Alloy Shell |
| Highlight: | DVI1080P HD video optical extender,1 Channel HD video optical extender |
||

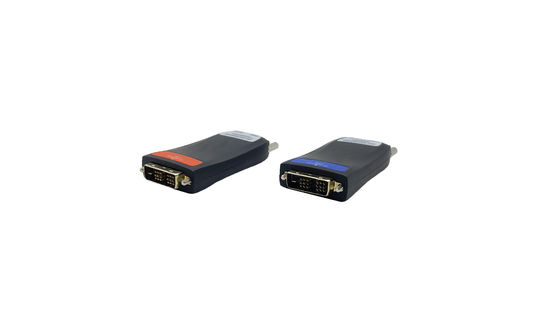

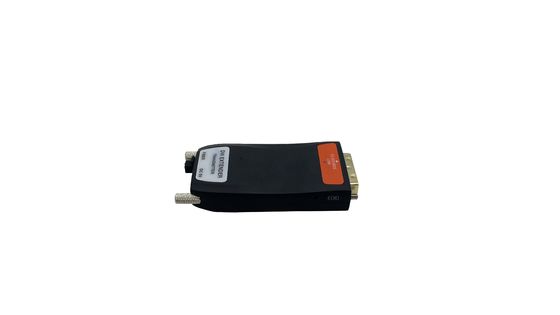

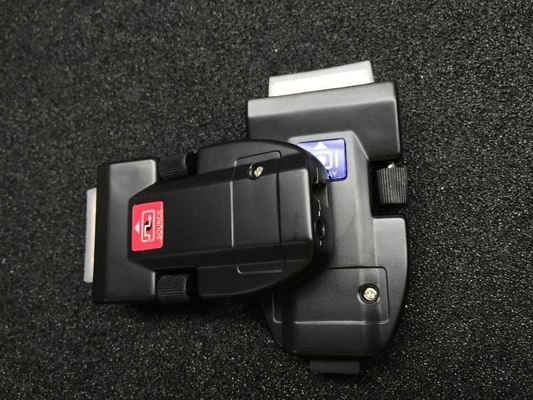

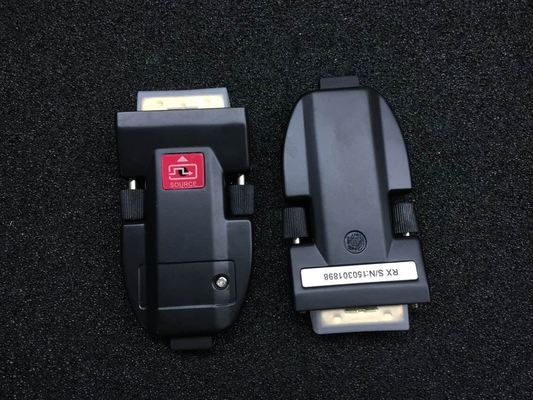

MINI DVI fiber optic extender is a miniaturized device used to solve the problem of long-distance high-speed transmission of DVI/HDMI video images. MINI DVI fiber optic extender can support EDID learning, compatible with different display devices with different resolutions. DVI optical transmitter includes a signal transmitter and a receiver, using USB power supply, can be powered through the projector, display, video processing equipment USB interface, to solve the problem of on-site installation power supply. The device is transmitted through a single mode optical fiber, which can travel up to 2KM. The biggest feature of the product is small, easy to install, low heat.
| Video | HDMI compatible | HDMI 1.3/fiber optic extender |
| DVI compatible | DVI 1.0 | |
| Video bandwidth | 10.2Gbps | |
| Video resolution | 480i ~1080p50/60Hz, 1920x1200@60Hz; HDMI resolution up to 4K30HZ backward compatible | |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | |
| Color depth | 8/10/12-bit (1080P60Hz) | |
| HDMI audio format |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|
| Transmission distance | 2KM (single-mode optical fiber), does not support multi-mode optical fiber transmission | |
| Electrostatic protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) | |
| Port | transmitter |
Input port: 1 x DVI-D [19-pin female] 1 x Micro USB Output port: 1 x FIBER |
| receiver |
Input port: 1 x FIBER1 x Micro USB Output port: 1×DVI-D [19-pin female] |
This product is an uncompressed DVI fiber optical extender that can transmit signals up to 2KM
SDI fiber optic extender has been widely used in various large-scale multimedia video recording, high-definition display, information release news center, traffic guidance and information display system, outdoor large screen display system, large stage display and entertainment center, TV live broadcast, multimedia conference, military guidance and other fields
The SDI fiber optic extender is a versatile solution that has found extensive use in numerous large-scale multimedia environments.
Furthermore, in military operations, the extender supports real-time video feeds for strategic guidance and coordination, showcasing its reliability in critical environments. Overall, the SDI fiber optic extender is integral to any application requiring high-quality video transmission over long distances, making it an essential tool in modern multimedia setups.
