Product Details:
|
| Input Ddc Signal: | 5 Volts | Multi-Window Capability: | Yes |
|---|---|---|---|
| Dual Power Supply: | Support | Output Port: | DVI,HDMI |
| Number Of Displays Supported: | Up To 64 | Display Technology: | LCD |
| Audio Output: | 3.5mm Analog Audio Output Port | Video Wall Modes: | Mirror, Extended, Video Wall |
| Highlight: | 4x4 hdmi video Wall controller,4K Video Wall Processor |
||

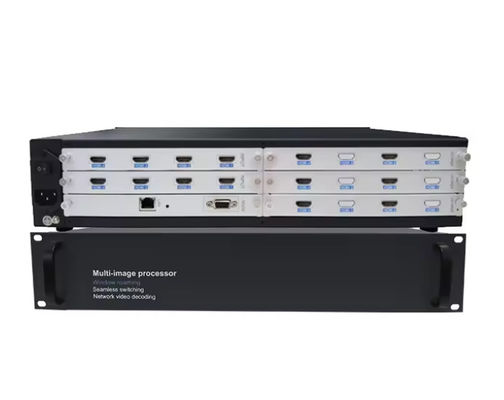

The HDMI Modular Video Wall Controller is an advanced display management solution designed to create customizable video walls using modular components. This controller provides the flexibility to expand or reduce the number of displays without compromising performance or visual quality. With its modular design, it is ideal for applications that require scalability and adaptability, making it a preferred choice for professional video wall setups in diverse environments.
| Video | |
| Video Amplifier Bandwidth | 3.2G |
| Input Video Signal | Video (TMDS) 0.5~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 1.3 and HDCP compliant |
| Pixel Rates | Clock frequency beyond 165Mpix/second |
| Format | 4:4:4 and 4:2:2 data input formats |
| Resolution | 480p, 720p, 1080i, 1080p |
| Input Card Format | 8-port HDMI card |
| Output Card Format | 4-port HDMI card |
| Input Slots | Up to 8 HDMI (2 cards) |
| Output Slots | Up to 8 HDMI (2 cards) |
| Video Type | RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits |
| Controls | |
| Front | Front-panel tactile switch buttons |
| RS-232 | 115200bps, Software flow DB9 Female |
| TCP/IP | Telnet |
| Other | |
| Working Temperature | 0°C~+55°C |
| Storage Humidity | 10%~90% |
| Weight | 11KG |
| Dimensions | 440mm (W) x 98.5mm (H) x 406mm (D) |
| Power Supply | 50/60Hz, 100~230 VAC |
| Consumption | 300W |
This HDMI Modular Video Wall Controller is the perfect solution for creating high-quality, versatile video walls that can adapt to any application, ensuring a stunning visual experience every time.
