Product Details:
|
| Product Name: | 16 In 24 Out HDMI Video Wall Controller With 3.5 U Casing | Inputs: | 16 X HDMI Input Port |
|---|---|---|---|
| Outputs: | 24 X HDMI Output Port | Type: | TV Wall Controller |
| Warranty: | 1 Year | Control Mode: | RS232,Remote,IP,button,IR |
| Highlight: | FCC Modular Video Wall Controller,RS232 Modular Video Wall Controller,FCC HDMI Video Wall Controller |
||

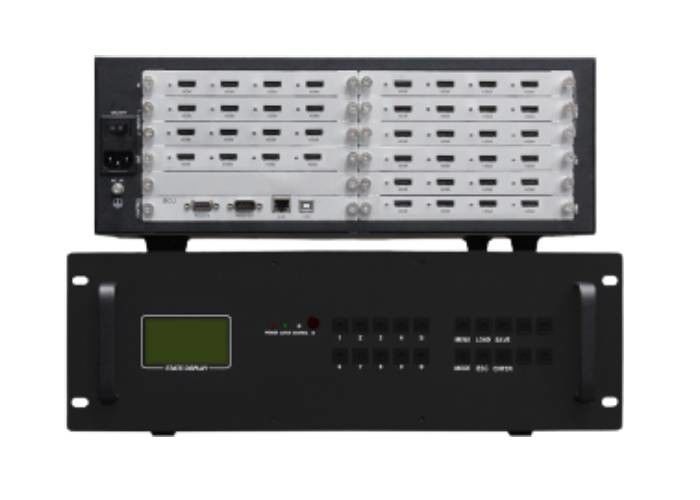

16 In 24 Out HDMI Modular Video Wall Controller With 3.5U Casing
16 In 24 Out HDMI Video Wall Controller With 3.5 U Casing
Technical Parameters
|
Description :
|
Up to sixteen video windows per display channel (Optional) |
|
Inputs (Optional) : |
DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
|
Input resolution :
|
XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
|
Output Signal :
|
DVI/VGA output |
|
Output resolution :
|
1920*1200/60HZ (compatible with standard resolution ) |
|
system control software :
|
Application Pro dedicated control software |
|
Power :
|
Dual power supplies 100AC~240VAC,50/60Hz, more trustable
hot-swappable power supply working mode, internationally
self-adaptive power |
|
consumption : |
12w per channel |
|
working temperature :
|
-20℃——60℃ |
|
working humidity :
|
5-95%
|
|
Chassis size : |
5U/7U/15U standard rackmount chassis |
|
Serial port : |
RS-232, 9 pin, D-type connector |
|
Baud rate : |
115200 |
|
Serial port architecture :
|
2=TX,3=RX,5=GND |
|
Ethernet control port : |
RJ-45 female ports, TCP/IP protocol |
|
Ethernet control speed :
|
Self-adaptive 10M or 100M, full duplex or half duplex |
|
Working hours : |
7 days x 24 hour |
System Diagram
1. Q: Are you a factory or trading company ?
A: We are direct manufacturer , respectively located in Shenzhen,Guangdong
province of China. Manufacturing Video wall controller,video wall processor,modular matrix switcher, HDMl matrix and HDMI Extender etc
2. Q: Could you offer samples for testing our market first ? How long does it take to send samples?
A: Yes, we accept sample orders, usually samples will be sent within 1-2 days.
3. Q: Is there any certificates provide ?
A: Yes , we got CE, ROHS , Fcc , certificates , and with test reports.
4. Q: Can you customize products ?
A: Yes , OEM and ODM is workable for us , just send your needing to us , and our engineers will work on it for you.
5. Q: What is the MOQ for customize order ?
A: Usually , 20 pcs as needed for customize logo , and 1000pcs as needed for customize box.
