Product Details:
|
| Humidity: | <75% | Video Amplifier Bandwidth: | 3.2G |
|---|---|---|---|
| Control Mode: | RS232,Remote,IP,button,IR | Consumption: | 300W |
| Application: | Indoor,Strage, Meeting Room ,.. | Keywords: | Modular Video Wall Controller |
| Type: | TV Wall Controller | Output Port: | DVI,HDMI |
| Highlight: | 1x4 Video Wall Controller,3X2 Video Wall Controller,3X2 Video Processor |
||
The Modular Video Wall Controller is a highly advanced and customizable video wall control system designed to provide users with a seamless and efficient video wall experience. With its cutting-edge technology and user-friendly design, this product is the perfect solution for businesses, organizations, and institutions that require a flexible and reliable video wall control system.
|
Description :
|
Up to sixteen video windows per display channel (Optional) |
|

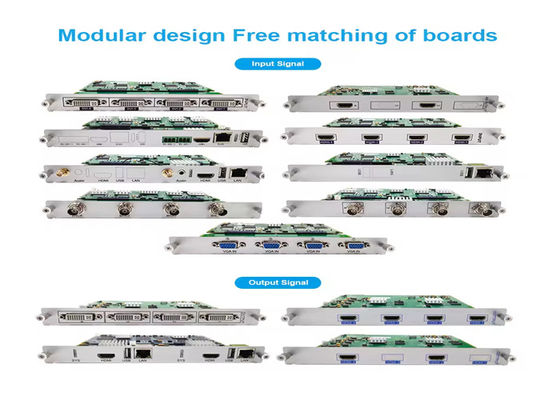

Inputs (Optional) : |
DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
|
Input resolution :
|
XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
|
Output Signal :
|
DVI/VGA output |
|
Output resolution :
|
1920*1200/60HZ (compatible with standard resolution ) |
|
system control software :
|
Application Pro dedicated control software |
|
Power :
|
: Dual power supplies 100AC~240VAC,50/60Hz, more trustable
hot-swappable power supply working mode, internationally
self-adaptive power |
|
consumption : |
12w per channel |
|
working temperature :
|
-20℃——60℃ |
|
working humidity :
|
5-95%
|
|
Chassis size : |
5U/7U/15U standard rackmount chassis |
|
Serial port : |
RS-232, 9 pin, D-type connector |
|
Baud rate : |
115200 |
The Modular Video Wall Controller is suitable for a wide range of applications including:
To learn more about our Modular Video Wall Controller or to place an order, please contact us today! Our friendly and knowledgeable team will be happy to assist you.
