Product Details:
|
| HDMI Compliance: | HDMI 1.4b | HDCP Compliance: | HDCP 1.4 |
|---|---|---|---|
| Video Bandwidth: | 10.2Gbps | Analog Audio Formats: | LPCM2.0 44.1KHz 48KHz |
| Inputs Ports: | 4x HDMI Type A [19-pin Female] 1x SEVICER [Micro USB, Update Port] | Outputs Ports: | 1x HDMI Type A [19-pin Female] 1x VGA [VGA-D] 1x Audio [3.5mm Stereo Mini-jack] |
| Highlight: | 4 Input Hdmi 4K Quad Multiviewer,FCC 4K Quad Multiviewer,1XVGA Output HDMI Multiviewer |
||

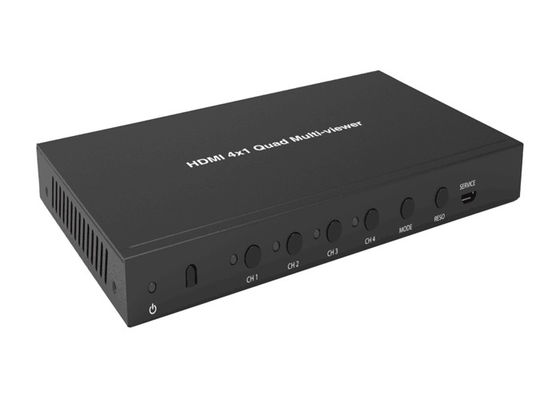

4 input hdmi quad 4K multiviewer with 1 x HDMI output and 1 x VGA output
1. Introduction:
Interface Type: HDMI;
Quantity: 1 Set;
Splitter Color: Gray;
Dimension: approx. 189*90*25mm / 6.7x3.2x0.9in;
2. Package Included:
1 x 4 input hdmi quad 4K multiviewer with 1 x HDMI output and 1 x VGA output;
1 x Remote Control;
1 x DC Power Adapter;
1 x User Manual;
3. Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Video Resolutions | 3840x2160@30Hz,1920x1080@50/60Hz,1280x720@50/60Hz,1920x1200@60Hz,1024x768@60Hz |
| Color Depth | 8-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Analog Audio Formats | LPCM2.0 44.1KHz 48KHz |
| ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |

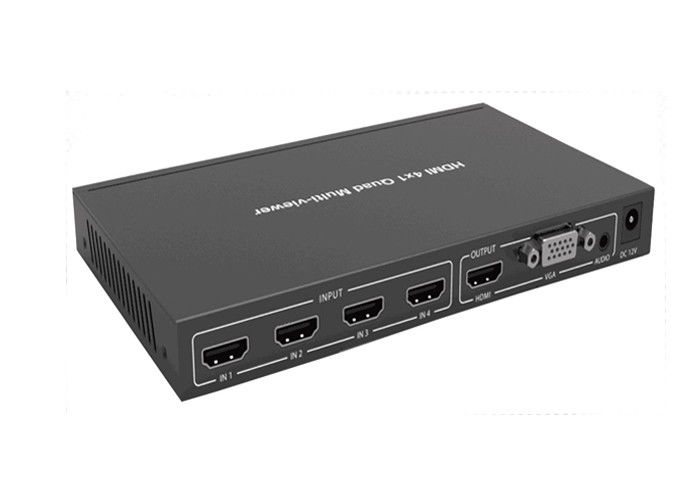

| Connections | |
| Inputs ports |
4x HDMI Type A [19-pin female] 1x SEVICER [Micro USB, Update port] |
| Outputs ports |
1x HDMI Type A [19-pin female] 1x VGA [VGA-D] 1x Audio [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 185mm (W)×128mm (D)×20mm (H) |
| Weight | 595g |
| Power Supply |
Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 7.68W (max) |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Product name | 4 input hdmi quad 4K multiviewer with 1 x HDMI output and 1 x VGA output |
4. Display Modes
The quad multi-viewer has 5 display modes. Please see the below detail description.
MODE 1: The quad multi-viewer will display separately four HDMI inputs. Press the CH1/CH2/CH3/CH4 buttons on-panel or using IR remote control the Source 1/2/3/4 buttons to selecting input source, corresponding on-panel light is on.
MODE 2: The quad multi-viewer divides four HD inputs with same size and display on a screen. The on-panel four lights is on. In the CH1 window, you can press the CH1 button on-panel or using IR remote control the Source 1 button to cyclical selection four inputs source. In the CH2 window, you can press the CH2 button on-panel or using IR remote control the Source 2 button to cyclical selection four inputs source...etc.
The rest can be done in the same manner.
MODE 3: The quad multi-viewer divides four HD inputs and display on a screen. The on-panel four lights is on. Operation method is the same as MODE 2.
MODE 4: The quad multi-viewer divides two HD inputs with same size and display on a screen. The on-panel CH1/CH2 lights is on. In the CH1 window, you can press the CH1 button on-panel or using IR remote control the Source 1 button to cyclical selection four inputs source. On the CH2 window, you can press the CH2 button on-panel or using IR remote control the Source 2 button to cyclical selection four inputs source.
MODE 5: The quad multi-viewer divides four HD inputs and display on a screen. The on-panel four lights is on. Operation method is the same as MODE 2.
7. Remote Control
: Press this button to setting standby mode, press this button again to power on the unit.
: Press this button to opening or closing display window frame.
RES. : Press this button to cyclical selection output resolution.
Mode:
: Press these buttons to
selecting output display mode.
Source:
1/2/3/4: Press these buttons to selecting input source.
:Press this button to cyclical selection input source (This button can be used only at the MODE 1).
Audio:
:Press this button to cyclical selection input source (This button can be used at the MODE 1 only).
Audio:
: Mute button.
:Press this button to cyclical selection audio output.
4 input hdmi quad 4K multiviewer with 1 x HDMI output and 1 x VGA output
