Full 1080P 3D 4k 60hz 4x1 Quad Hdmi Multiviewer With Seamless Switcher Function

Large Image : Full 1080P 3D 4k 60hz 4x1 Quad Hdmi Multiviewer With Seamless Switcher Function

Product Details:

Place of Origin:	Mainland China
Brand Name:	VINCAN
Certification:	CE,FCC and RoHs
Model Number:	WL-04K01M

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Carton box and standard export package for Full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 pcs per week

Chat Now

Full 1080P 3D 4k 60hz 4x1 Quad Hdmi Multiviewer With Seamless Switcher Function

Description

Color Depth:	8-bit	Color Space:	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Video Resolutions:	3840x2160@30Hz,1920x1080@50/60Hz,	ESD Protection:	Human-body Model： ±8kV (Air-gap Discharge) , ±4kV (Contact Discharge)
Operating Temperature:	0°C ~ 40°C / 32°F ~ 104°F	Storage Temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Highlight:	60hz Quad Hdmi Multiviewer , 4x1 Quad Hdmi Multiviewer , Seamless Switcher Function HDMI Multiviewer

Full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function

1.Introduction:
HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch.

It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching

4 HD input signal synchronously. The control methods of the switch is flexible, it can be switched via button and IR control.

It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

2.Features:
***Compatible HDMI 1.3a, HDCP 1.2, input compatible DVI 1.0 version;
***Support IR control;
***Support 4 HDMI input, 1 HDMI output;
***Support 4 channels HDMI signal screen segmentation;
***Support 4 channels HDMI signal seamless switching;
***Support highest resolution up to 1080P/60Hz;
***Support resolution: 1080P, 720P, 1080i, 1024*768, 1360*768 and so on;
***Support audio output format: PCM2.0;
***Support standard 26AWG cable, input up to 15m/49ft, output up to 15m/49ft;
***DC 12 V/2 A power adapter;

***Full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function;

3. Specifications

Technical
HDMI Compliance	HDMI 1.4b
HDCP Compliance	HDCP 1.4
Video Bandwidth	10.2Gbps
Video Resolutions	3840x2160@30Hz,1920x1080@50/60Hz,1280x720@50/60Hz,1920x1200@60Hz,1024x768@60Hz
Color Depth	8-bit
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Analog Audio Formats	LPCM2.0 44.1KHz 48KHz
ESD Protection	Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connections
Inputs ports	4x HDMI Type A [19-pin female] 1x SEVICER [Micro USB, Update port]
Outputs ports	1x HDMI Type A [19-pin female] 1x VGA [VGA-D] 1x Audio [3.5mm Stereo Mini-jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	185mm (W)×128mm (D)×20mm (H)
Weight	595g
Power Supply	Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	7.68W (max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)
Product name	Full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function

4. Operation Controls and Functions for full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI

Seamless Switcher Function

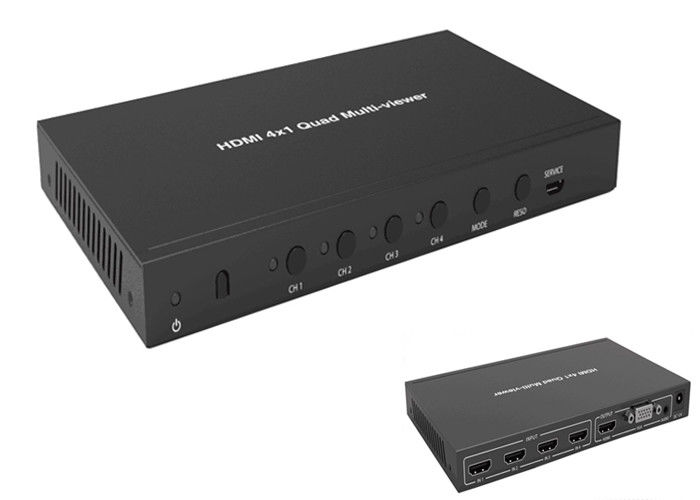

4.1 Front Panel

Full 1080P 3D 4k 60hz 4x1 Quad Hdmi Multiviewer With Seamless Switcher Function 0

Number	Name	Function description
1	POWER LED	The LED will illuminate green when the unit is working, red when the unit is in standby mode.
2	IR	IR receiver window. It accepts the remote control signal of this device only.
3	CH1/CH2/CH3/CH4 button	Selects input channel button (Please see “6. Display Modes” detail description).
4	MODE button	Press this button to cyclical selection display mode output (Please see “6. Display Modes” detail description). Press this button up to 5s, the output screen is full screen and equal proportion display.
5	RESO	Cycling select different output resolution. Press this button up to 5s to opening or closing window display frame.
6	SERVICE port	Firmware update used. (Manufacture use only.)

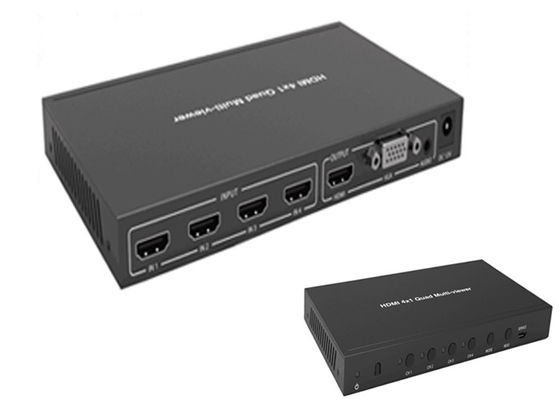

4.2 Rear Panel

Full 1080P 3D 4k 60hz 4x1 Quad Hdmi Multiviewer With Seamless Switcher Function 1

Number	Name	Function description
1	HDMI INPUT	Connect to HDMI source device such as DVD player or PS4.
2	HDMI OUTPUT	Connect to HDMI display device such as TV or Projector with a HDMI cable.
3	VGA OUTPUT	VGA output port, this port output signal is the same as the HDMI output port.
4	AUDIO OUTPUT	Analog audio output port. (Note: If the HDMI output is MODE 1, the audio output follows the video content. If the HDMI output is MODE 2/3/4/5, press CH1/CH2/CH3/CH4 up to 5s to selecting audio output or using remote control to cyclical selection audio output. The default status is CH1 screen audio output.)
5	DC 12V	Plug the 12V/1A DC power supply into the unit and connected the adapter to an AC outlet.

Full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function
