Product Details:
|
| HDMI Compliance: | HDMI 1.4b | HDCP Compliance: | HDCP 1.4 |
|---|---|---|---|
| Video Bandwidth: | 3Gbps | Video Resolutions: | 4K2K@30Hz, YUV4:4:4, RGB4:4:4 |
| Color Depth: | 8bit | Color Space: | RGB, YUV4:4:4, YUV 4:2:2 |
| Highlight: | 8bit HDMI Multiviewer,HDCP 1.4 HDMI Multiviewer,HDMI Multiviewer With Seamless Switcher |
||

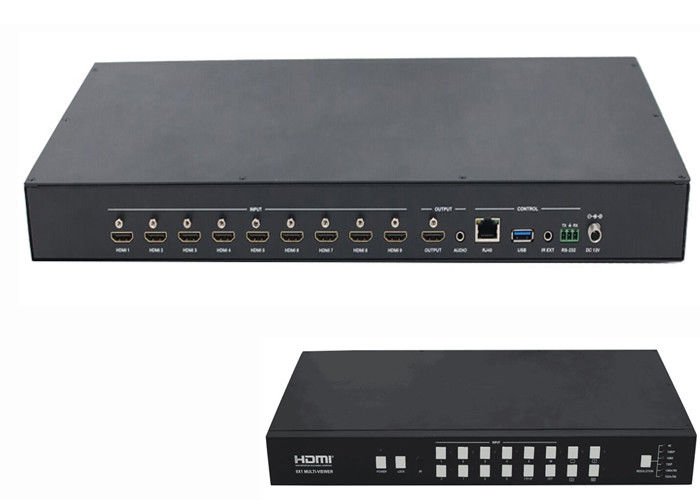

7 , 8 , 9 4K - ch HDMI input 1 HDMI output HDMI Multiviewer With Seamless Switcher
1. Introduction
2. Specification
| HDMI Compliance | HDMI 1.4b | |
| HDCP Compliance | HDCP 1.4 | |
| Video Bandwidth | 3Gbps | |
| Video Resolutions | 4K2K@30Hz YUV4:4:4,RGB4:4:4 | |
| Color Depth | 8-bit | |
| Color Space | RGB, YUV4:4:4, YUV 4:2:2 | |
| HDMI Audio | LPCM 2.0 | |
| Formats | ||
| ESD Protection | Human-body Model: | |
| ±8kV (Air-gap discharge) , ±4kV (Contact discharge) | ||
| Connections | ||
| 9x HDMI Type A [19-pin female] | ||
| Inputs | 1x RJ45 [8-pin female] | |
| 1x RS-232 [Phoenix jack] | ||
| 1x USB [USB-A] | ||
| 1x IR EXT [3.5mm Stereo Mini-jack] | ||
| Outputs | 1x HDMI Type A [19-pin female] | |
| 1x Audio Out [3.5mm Stereo Mini-jack] | ||
| Mechanical | ||
| Housing | Metal Enclosure | |
| Color | Black | |
| Dimensions | 440mm (W)×200mm (D)×44.5mm (H) | |
| Weight | 2.26kg | |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC12V/1A | |
| (US/EU standards, CE/FCC/UL certified) | ||
| Power | 7.8W (max) | |
| Consumption | ||
| Operating | 0°C ~ 40°C / 32°F ~ 104°F | |
| Temperature | ||
| Storage | -20°C ~ 60°C / -4°F ~ 140°F | |
| Temperature | ||
| Relative Humidity | 20~90% RH (non-condensing) | |
| Product name | 7 , 8 , 9 4K - ch HDMI input 1 HDMI output HDMI Multiviewer With Seamless Switcher |
3.Using application of the 7 , 8 , 9 4K - ch HDMI input 1 HDMI output HDMI Multiviewer With Seamless Switcher :
