Product Details:
|
| Input Resolution: | Up To 1080p At 60 Hz | Output Resolution: | Up To 4K2K At 30 Hz |
|---|---|---|---|
| Control Method: | Front-Panel, IR, RS-232, LAN Control | Input Ports: | 9 X HDMI 1.4b |
| Seamless Switching: | Support | Product Name: | 9 X 1 4K HDMI Seamless Switcher With Multiview And Scaler |
| Highlight: | RS232 HDMI Seamless Switcher,4K HDMI Seamless Switcher,HDMI Seamless Switcher With Multiview |
||

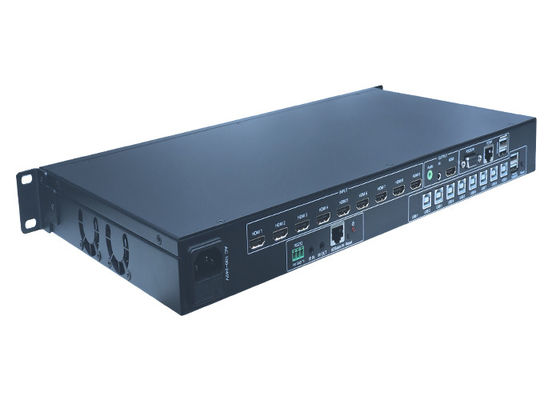

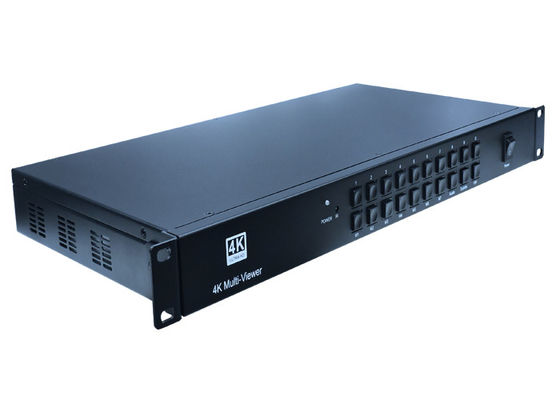

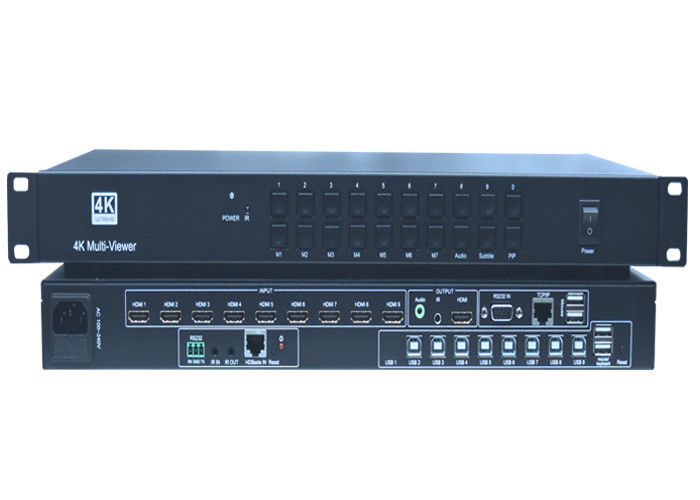

Winlink WL-0901M 9 x 1 4K HDMI Seamless Switcher with Multiview and scaler
1. Introduction
The Winlink WL-0901M 9x1 seamless switcher supports (9) HDMI inputs to (1) HDMI output. It allows the user to view up to (9) HD video sources on one display at the same time. Output resolution can be chosen for a supporting legacy display. This switcher is a suitable solution for presentation purposes such as classrooms and conference rooms. This product has a 3 year warranty.
2. Features
3. Specification
| HDMI Compliance | HDMI 1.4b | |
| HDCP Compliance | HDCP 1.4 | |
| Video Bandwidth | 3Gbps | |
| Video Resolutions | 4K2K@30Hz YUV4:4:4,RGB4:4:4 | |
| Color Depth | 8-bit | |
| Color Space | RGB, YUV4:4:4, YUV 4:2:2 | |
| HDMI Audio | LPCM 2.0 | |
| Formats | ||
| ESD Protection | Human-body Model: | |
| ±8kV (Air-gap discharge) , ±4kV (Contact discharge) | ||
| Connections | ||
| 9x HDMI Type A [19-pin female] | ||
| Inputs | 1x RJ45 [8-pin female] | |
| 1x RS-232 [Phoenix jack] | ||
| 1x USB [USB-A] | ||
| 1x IR EXT [3.5mm Stereo Mini-jack] | ||
| Outputs | 1x HDMI Type A [19-pin female] | |
| 1x Audio Out [3.5mm Stereo Mini-jack] | ||
| Mechanical | ||
| Housing | Metal Enclosure | |
| Color | Black | |
| Dimensions | 440mm (W)×200mm (D)×44.5mm (H) | |
| Weight | 2.26kg | |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC12V/1A | |
| (US/EU standards, CE/FCC/UL certified) | ||
| Power | 7.8W (max) | |
| Consumption | ||
| Operating | 0°C ~ 40°C / 32°F ~ 104°F | |
| Temperature | ||
| Storage | -20°C ~ 60°C / -4°F ~ 140°F | |
| Temperature | ||
| Relative Humidity | 20~90% RH (non-condensing) | |
| Product name | Winlink WL-0901M 9 x 1 4K HDMI Seamless Switcher with Multiview and scaler |
4.Using Application:
Winlink WL-0901M 9 x 1 4K HDMI Seamless Switcher with Multiview and scaler
