Product Details:
|
| HDMI 1.4, HDCP 1.4, And DVI 1.0 Version: | Compatible | 16 HDMI Inputs, One HDMI Output: | Support |
|---|---|---|---|
| Seamless Switching On Any Modes Of Multi-viewer: | Support | IR Control And RS232 Control: | Support |
| Input Resolution: | 1080P, 720P, 1080i, 1024x768, 1360x768 Etc. | Output Resolution: | 1080P@60HZ, 2560x1600@60HZ, 2560x1440@60HZ, 3840x2160@30HZ. |
| Highlight: | CE 4k HDMI Multi Viewer,Seamless Switching HDMI Multi Viewer,PC Control Software HDMI Multiviewer |
||
| Technical | |
| Video Bandwidth | 2.25Gbps |
| Input Ports | 16 × HDMI (Female type),1x RS232 |
| Output Ports | 1 × HDMI (Female type), |
| Audio output | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 |
| 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, | |
| Input Resolution | 1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60, |
| 1024x768@60,1280x720@60,1920x1080@60; | |
| Output Resolution | 1080p,1080i,720p,1024x768,1360x768 |
| ESD Protection | ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Power Supply | 12V/5A DC (US/EU standards, CE/FCC/UL certified) |
| Dimensions | 440mm(W)×200mm(D)×45 mm(H) |
| Weight | 1800g |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Power Consumption | 24W |

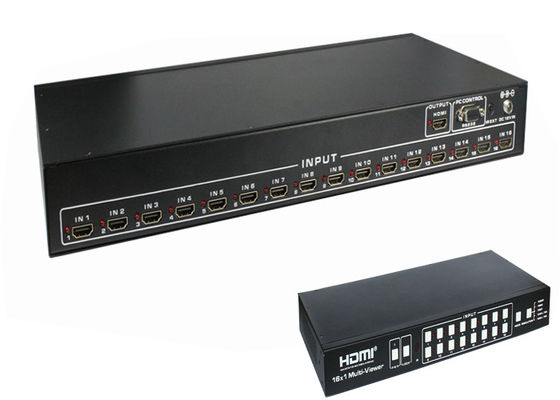

| Product name | 16 port 4K HDMI Multi-viewr with Seamless Switching with PC control software |
4.Using Application diagram for 16 port 4K HDMI Multi-viewr with Seamless Switching with
PC control software:
