Product Details:
|
| Product Name: | 7 U Modular Video Wall Controller 4k Hdmi 20 Input 40 Output | Keywords: | Modular Video Wall Controller |
|---|---|---|---|
| Inputs: | 20x HDMI Input | Outputs: | 40 X HDMI Output |
| Application: | Indoor | Installation: | Wall Mountable |
| Highlight: | 7U HDMI Video Controller,RoHS HDMI Video Controller,Modular 7U Multi TV Display Controller |
||

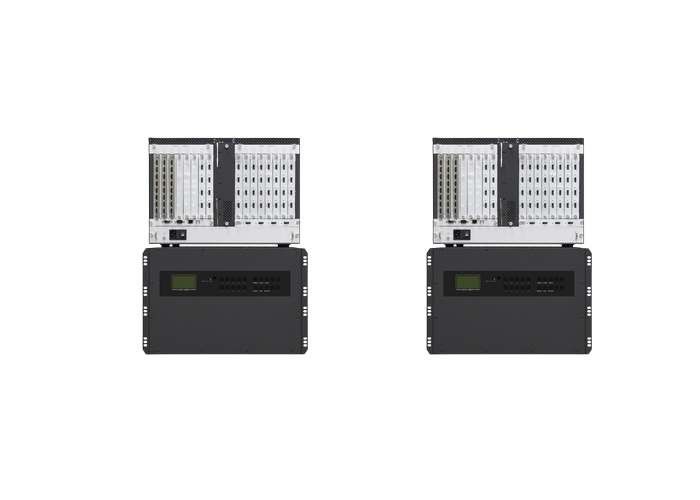

7 U Modular Video Wall Controller 4k Hdmi 20 Input 40 Output
Modular Video Wall Controller Features:
1. POP Picture Out Picture Mode.
2. Single screen can create 16 video windows at most.
3. PIP mode.
4. Overlapping mode.
5. Scaling and Positioning.
Technical Parameters of the 7 U Modular Video Wall Controller 4k Hdmi 20 Input 40 Output
|
type |
Item |
Detail parameters |
||||
|
|
chassis |
1 U |
2U |
3.5 u |
7U |
12.5U |
|
Control board |
1 |
1 |
1 |
1 |
1 |
|
|
Expansion slots |
1 |
1 |
3 |
1 |
1 |
|
|
In/out card slots |
2 |
4 |
8 |
16 |
36 |
|
|
Weight |
8.5KG |
11KG |
18KG |
31.5KG |
49KG |
|
|
Dimension (L)*(W)* (H)cm |
58*45*21 |
60*54*20 |
62*63*30 |
60*54*47 |
63*59*74 |
|
|
Board card |
Input card |
Various input CARDS can be combined arbitrarily: DVI-I board card (support compositevideo, DVI, HDMIL, component, VGA), 4K input card, SDI card, IP input. -STD boad, Information publishing board, etc |
||||
|
output card |
HDMI Card(inbuilt audio),HDMI Card(inbuilt audio+3.5mm audio port) |
|||||
|
Control |
Communication method |
Support TCP network control and serial port control; Support RS232 and RS485 loop out |
||||
|
CMS control |
DIMP software |
|||||
|
BS control |
No need to install any client software |
|||||
|
Cross-platform control |
Support windows, IOS MACOS, Android, Linux |
|||||
The Using Picture of the 7 U Modular Video Wall Controller 4k Hdmi 20 Input 40 Output:
