Product Details:
|
| Name: | Modular Video Wall Controller 8 In 8 Out Mixer Hdmi Splitter | Video Amplifier Bandwidth: | 3.2G |
|---|---|---|---|
| Format: | 4:4:4 And 4:2:2 Data Input Formats | Resolution: | 480p, 720p, 1080i, 1080p |
| Controls: | Front-panel Tactile Switch Buttons,115200bps, Software Flow DB9 Female,TCP/IP | Consumption: | 300W |
| Highlight: | 300W 2U Modular Video Wall Controller,Video Controller 4 In 12 Out,Video Controller 8 In 8 Out |
||
Modular Video Wall Controller 8 In 8 Out Mixer Hdmi Splitter
Features
1. Complete, Real-Time Hardware Solution
2. Plug-and-play ready
3. 4-8 HDMI inputs
4. Up to 12 HDMI outputs
5.Modular Video Wall Controller 8 In 8 Out Mixer Hdmi Splitter
Specification:
| Video | |
| Video Amplifier Bandwidth | 3.2G |
| Input Video Signal | Video (TMDS) 0.5~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 1.3 and HDCP compliant |
| Pixel Rates | Clock frequency beyond 165Mpix/second |
| Format | 4:4:4 and 4:2:2 data input formats |
| Resolution | 480p, 720p, 1080i, 1080p |
| Input Card Format | 8-port HDMI card |
| Output Card Format | 4-port HDMI card |
| Input Slots | Up to 8 HDMI (2 cards) |
| Output Slots | Up to 8 HDMI (2 cards) |
| Video Type | RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits |
| Controls | |
| Front | Front-panel tactile switch buttons |
| RS-232 | 115200bps, Software flow DB9 Female |
| TCP/IP | Telnet |
| Other | |
| Working Temperature | 0°C~+55°C |
| Storage Humidity | 10%~90% |
| Weight | 11KG |
| Dimensions | 440mm (W) x 98.5mm (H) x 406mm (D) |
| Power Supply | 50/60Hz, 100~230 VAC |
| Consumption | 300W |
| Product name | Modular Video Wall Controller 8 In 8 Out Mixer Hdmi Splitter |

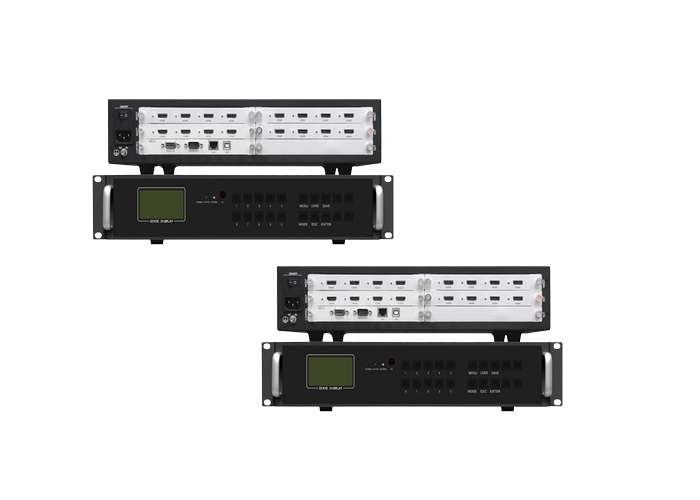

The BIG PICTURES FOR Modular Video Wall Controller 8 In 8 Out Mixer Hdmi Splitter:
