Product Details:
|
| Digital-to-analog Dynamic Range (A- Weighted): | 120dB | Power Consumption: | <40W |
|---|---|---|---|
| Dimensions (W*D*H): | 482*258*45(mm) | Digitalizing Bit: | 24 Bit |
| RS232/RS485: | 1 | Product Name: | Surround Sound Processor Dsp Digital Signal Processor |
| Highlight: | 3Gbps HDMI Splitter Switcher,3Gbps High Definition Switcher,270 Mbps HDMI Splitter Switcher |
||
1.Description:

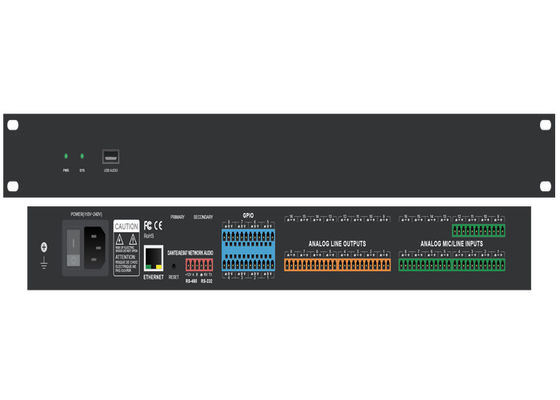

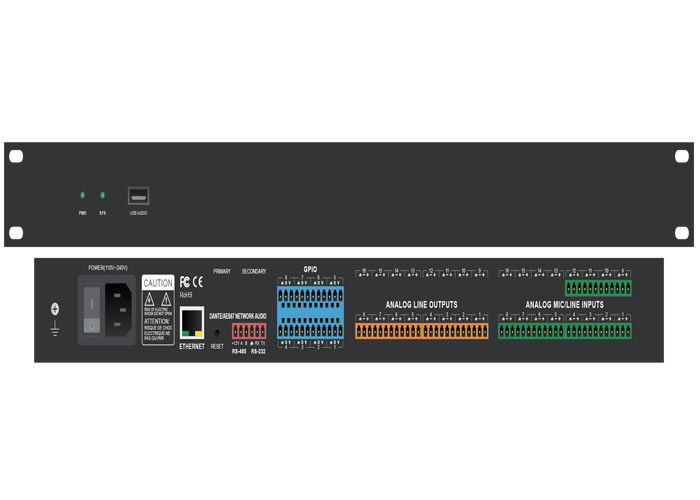

The WNLP1208 digital audio processor support 20 ways analog input and output channel,It provides low delay and high fidelity audio signal transmission under the support of high broadband network.
Surround Sound Processor Dsp Digital Signal Processor supports USB recording and playback function, support RS232, RS485, GPIO control interface, perfect connection of various control devices.Customers can choose feedback cancellation (AFC), echo cancellation (AEC), noise cancellation (ANC) algorithm.
2.Specification :
|
Item
|
Specifications |
| Max Input Level | 18dBu |
| Max Output Level | 18dBu |
| Default Output Level | 0dBu |
| THD+N | <0.003%；1kHz@+4dBu <0.0035%；1kHz@+10dBm <0.0035%；20Hz～20kHz@+4dBu |
| Frequency Response | 20Hz-20kHz, +/-0.2dB |
| In To Out dynamic range | 110dB (Unrecorded right) |
| S/N | -110dB (Unrecorded right) |
| ADC Dynamic Range | CS5361 114dB |
| DAC Dynamic Range | CS4382A 114dB |
| DSP | 400Mhzfloating - point SHARC ADSP-21488 |
| Sampling Frequency | 48K |
| QE | 24Bit |
| Storage | 32 |
| Control Mode | 100M Ethernet |
| Language | English |
| Noise Gate | Yes |
| Feedback | Yes |
| Signal Generator | Yes |
| Pressure Limiter | Independent 12 channel |
| Delay | Output 1-4 218ms Output 5-8 148ms |
| PEQ Low Shelf High Shelf |
Independent 16-band |
| High Pass/Low Pass Bessel Butterworth Link-Riley |
Independent 12 channel -6dB/oct -12dB/oct -18dB/oct -24dB/oct -36dB/oct -48dB/oct |
| Product name | Surround Sound Processor Dsp Digital Signal Processor |
3.Typical System Application:
Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.
It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,
it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will
conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made
on the mixed signal via the auto mixer of main processor so that more microphones can be connected
to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.
Surround Sound Processor Dsp Digital Signal Processor.
