Product Details:
|
| Interface: | HDMI A TYPE (HDMI2.0 SUPPORT HDCP 2.2) ;DP Port | Resolution: | Up To 3840x2160@60Hz |
|---|---|---|---|
| HDMI Output: | 1920*1080@60Hz | Power Supply: | DC 12V/1A Adaptor (US/EU Standards, CE/FCC/UL Certified) |
| Humidity: | <75% | Audio Output: | 3.5mm Analog Audio Output Port |
| Highlight: | DC12V Modular Video Wall Controller,3840x2160 Modular Video Wall Controller,FCC Video Wall Controller 4K |
||

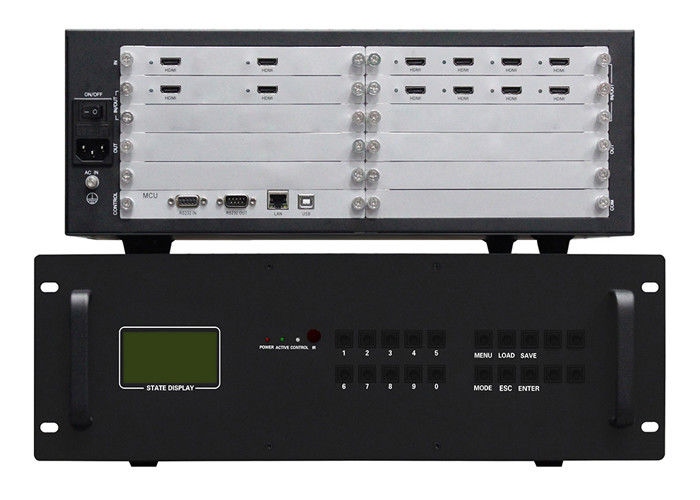

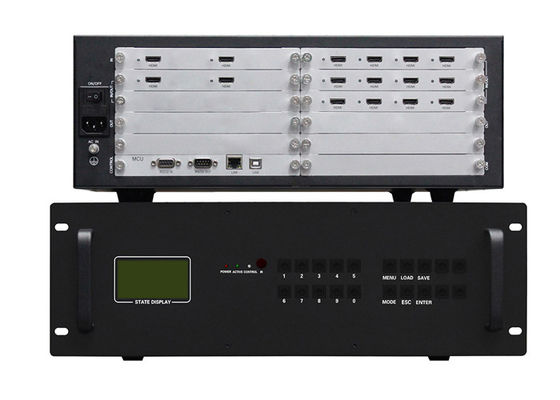

3840x2160 60Hz Modular Video Wall Controller 4K Analog Audio Output
4-Ch 4k HDMI In 10-Ch HDMI Out And 4-Ch 4k HDMI In 8-Ch HDMI Out Modular Video Wall Controller With 4K@60HZ 4:4:4 And DP
Description:
The 4K Video Wall Controller uses the DSP+FPGE advanced image processing technology and along with the Max HDMI input signal of HDMI 2.0 (HDCP2.2) 3840x2160@60HZ, you are able to view fast motion dynamic pictures with no delay or frame lost giving you a crisp clear image that is sure to impress.
This 4K Video Wall Controller is ideal for environments where superior performance and crisp clear high resolutions are required to display your video content / digital signage over many displays in large format.
Features:
Specification:
| Video | |
| Video Amplifier Bandwidth | 3.2G |
| Input Video Signal | Video (TMDS) 0.5~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 1.3 and HDCP compliant |
| Pixel Rates | Clock frequency beyond 165Mpix/second |
| Format | 4:4:4 and 4:2:2 data input formats |
| Resolution | 480p, 720p, 1080i, 1080p |
| Input Card Format | 8-port HDMI card |
| Output Card Format | 4-port HDMI card |
| Input Slots | Up to 8 HDMI (2 cards) |
| Output Slots | Up to 8 HDMI (2 cards) |
| Video Type | RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits |
| Controls | |
| Front | Front-panel tactile switch buttons |
| RS-232 | 115200bps, Software flow DB9 Female |
| TCP/IP | Telnet |
| Other | |
| Working Temperature | 0°C~+55°C |
| Storage Humidity | 10%~90% |
| Weight | 11KG |
| Dimensions | 440mm (W) x 98.5mm (H) x 406mm (D) |
| Power Supply | 50/60Hz, 100~230 VAC |
| Consumption | 300W |
Using application:
