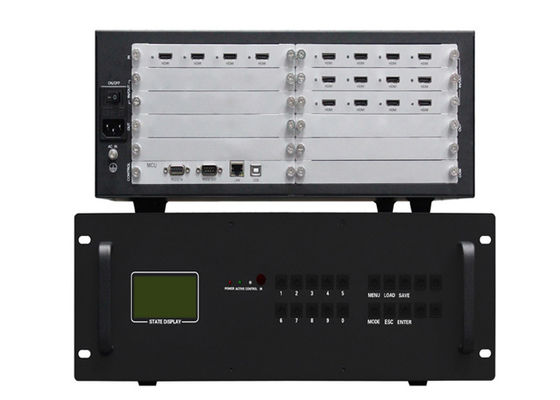

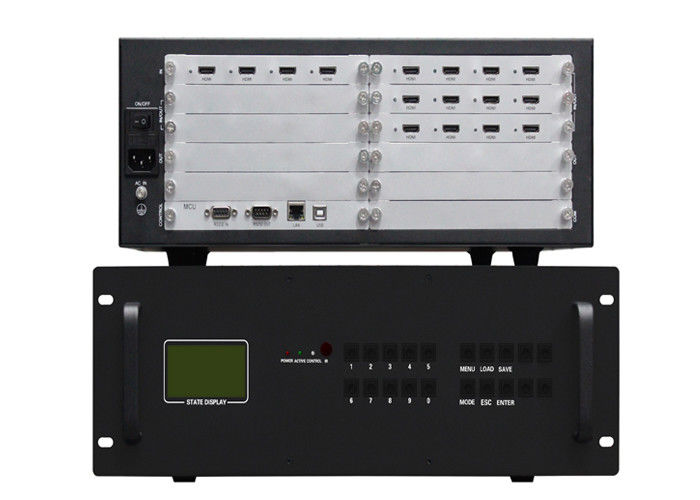

3.5U Casing Modular Video Wall Controller 3x4 With Dual Power Supply
3.5U Casing 3x4 Modular Video Wall Controller With Dual Power Supply And Preview , Kvm Function
Description:
WL-HDVP Modular Video Wall Controller is a widely applied high-tech product in the field of image and video display.
WL-HDVP Series Image Processor is capable of processing a large number of images and videos, switching video and seamless connection with simple controlling, supporting for multiple platforms and excellent compatibility, basing on ARM + FPGA infrastructure and video processing algorithms of proprietary intellectual property rights. On the basis of meeting the basic functions, (Select the configuration,the price does not include this configuration) the IP decoding Service CARD easily, Pre-monitor and Echo Service CARD, multimedia screen Service CARD with the docking station. By this means, WL-HDVP Series meet the expansion requirements and improve the flexibility of the system greatly.
Features:
1. Average 6 Seconds start time and start and use.
2. Equipped with Linux system, system stability, low power consumption, support 7*24 hours longtime and stable operation
3. Embedded database, support a variety of plans
4. Modular plugged card design, Service CARDisplug-in card, very convenient for daily use and maintenance
5. Input interface supports HDMI/VGA/DVI/BNC/SDI and output interface supports HDMI/DVI
6. Support hardware reset
7. A single signal can be tiled displayed on any of M×N(>0) units
8. Support input signals to arbitrarily mosaic, window and roam, support layers overlay, single screen supports two image layers
9. Intelligent scaling technology, image scaling using intelligent multi-phase filtering algorithm, according to the characteristics of the image automatically select the optimal filtering coefficient, image close to the order of magnitude; infinite scaling effect, more detail, non-jagged edge and good sharpness.
Specification:
|
Video |
|
|
Video Amplifier Bandwidth |
3.2G |
|
Input Video Signal |
Video (TMDS) 0.5~1.0Vpp |
|
Input DDC Signal |
5 volts |
|
Compliances |
HDMI 1.3 and HDCP compliant |
|
Pixel Rates |
Clock frequency beyond 165Mpix/second |
|
Format |
4:4:4 and 4:2:2 data input formats |
|
Resolution |
480p, 720p, 1080i, 1080p |
|
Input Card Format |
8-port HDMI card |
|
Output Card Format |
4-port HDMI card |
|
Input Slots |
Up to 8 HDMI (2 cards) |
|
Output Slots |
Up to 8 HDMI (2 cards) |
|
Video Type |
RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits |
|
Controls |
|
|
Front |
Front-panel tactile switch buttons |
|
RS-232 |
115200bps, Software flow DB9 Female |
|
TCP/IP |
Telnet |
|
Other |
|
|
Working Temperature |
0°C~+55°C |
|
Storage Humidity |
10%~90% |
|
Weight |
11KG |
|
Dimensions |
440mm (W) x 98.5mm (H) x 406mm (D) |
|
Power Supply |
50/60Hz, 100~230 VAC |
|
Consumption |
300W |
The wall modes of using applications :
