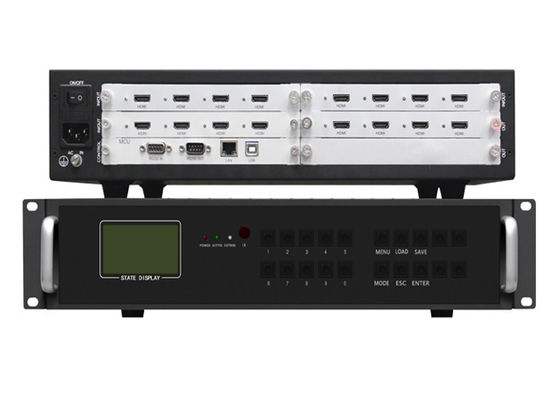

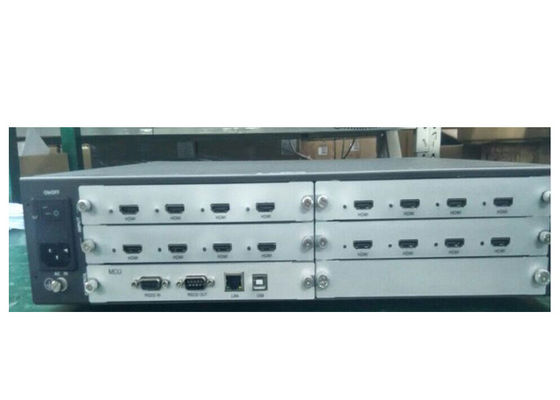

Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter

Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter
Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter

Large Image :  Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-HDVP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 500-5000 /pcs
Packaging Details: Carton box and standard export package for Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per week

Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter

Description
Video Amplifier Bandwidth: 3.2G Format: 4:4:4 And 4:2:2 Data Input Formats
Resolution: 480p, 720p, 1080i, 1080p Controls: Front-panel Tactile Switch Buttons,115200bps, Software Flow DB9 Female,TCP/IP
Consumption: 300W Input DDC Signal: 5 Volts
Product Name: Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter
High Light:

2U Modular Video Wall Controller

,

300W Modular Video Wall Controller

,

300W TV Wall Controller

Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter


Description:
Its compact design and powerful processing power makes it the perfect solution for any video wall installation. The
Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter is the newest version of image controller. It can display various analog/digital image, video source on the output device: LCD wall, surveillance system or others. The controller adopts modular design that the input cards and output cards can be used in any combination, in any order and in any slots on the backplane; moreover, it can be controlled and connected with multiple video wall processors used inseamless conjunction. Plug-and-play, the controller is immediately ready for use as soon as it is connected to an AV set-up: no additional drivers or installers required. Better still, its exceptional hardware makes for stunning video wall displays in environments like retail spaces, educational facilities, conference rooms, command centers, event halls, entertainment venues, airports, and more!

Features
1. Complete, Real-Time Hardware Solution
2. Plug-and-play ready
3. 4-8 HDMI inputs
4. Up to 12 HDMI outputs
5. Output resolution up to 1080p (1920×1080 @ 60Hz)
6. Supports DVI with adaptors
7. Creative video wall modes
8. Easy control (front-panel buttons, software, TCP-IP and optional RS-232)
9. HDCP and HDMI 1.3 compliant
10.Includes user-friendly videowall Software: FREE!
11. Integrated scaler
12. For 8×4 to 16×12 video wall displays

Specification:

Video
Video Amplifier Bandwidth 3.2G
Input Video Signal Video (TMDS) 0.5~1.0Vpp
Input DDC Signal 5 volts
Compliances HDMI 1.3 and HDCP compliant
Pixel Rates Clock frequency beyond 165Mpix/second
Format 4:4:4 and 4:2:2 data input formats
Resolution 480p, 720p, 1080i, 1080p
Input Card Format 8-port HDMI card
Output Card Format 4-port HDMI card
Input Slots Up to 8 HDMI (2 cards)
Output Slots Up to 8 HDMI (2 cards)
Video Type RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits
Controls
Front Front-panel tactile switch buttons
RS-232 115200bps, Software flow DB9 Female
TCP/IP Telnet
Other
Working Temperature 0°C~+55°C
Storage Humidity 10%~90%
Weight 11KG
Dimensions 440mm (W) x 98.5mm (H) x 406mm (D)
Power Supply 50/60Hz, 100~230 VAC
Consumption 300W
Product name Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter


Multiple wall modes of the Modular Video Wall Controller 4 In 12 Out ​ :
Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter 0
2x6
Modular Video Wall Controller 4 In 12 Out 8 In 8 Out Hdmi Splitter 1
4x3
