Product Details:
|
| Product Name: | 7 U 18 -ch 4K HDMI Input And 18-ch 1080P HDMI Output Video Wall Controller | Inputs: | 18 -ch 4K HDMI Input |
|---|---|---|---|
| Outputs: | 18-ch 1080P HDMI Output | Input Voltage: | AC100~240V 50 /60 HZ |
| Color: | Black | Keyword: | Lcd Video Wall Controller, Modular Video Wall Controller |
| Highlight: | RS232 4K Video Wall Controller,RS485 4K Video Wall Controller,7U Video Wall Switcher |
||

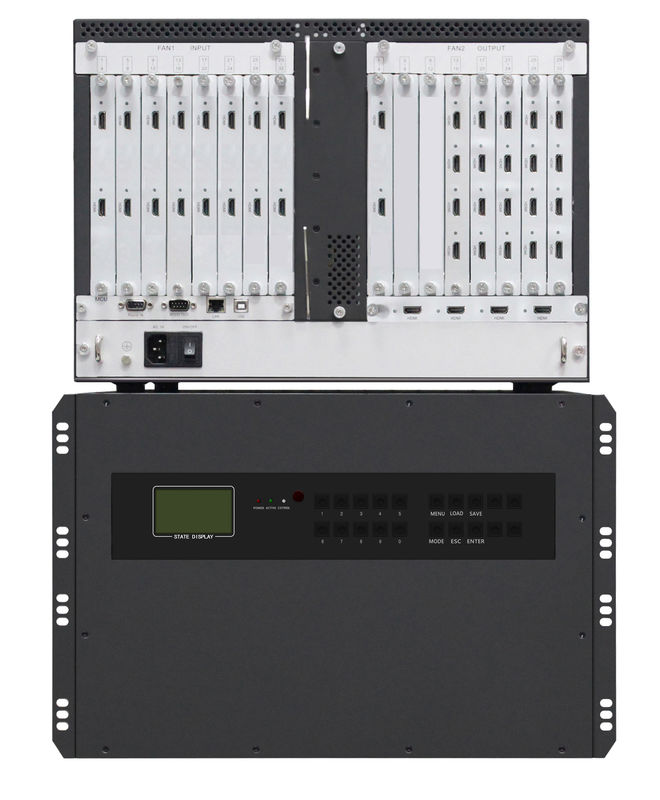

7U RS485 RS232 4K Video Wall Controller 18 Ch 1080P HDMI Output
7U 18 -ch 4K HDMI input and 18-ch 1080P HDMI output video wall controller
| type | Item | Detail parameters | ||||
| chassis | 1 U | 2U | 3.5 u | 7U | 12.5U | |
| Control board | 1 | 1 | 1 | 1 | 1 | |
| Expansion slots | 1 | 1 | 3 | 1 | 1 | |
| In/out card slots | 2 | 4 | 8 | 16 | 36 | |
| Weight | 8.5KG | 11KG | 18KG | 31.5KG | 49KG | |
| Dimension (L)*(W)* (H)cm | 58*45*21 | 60*54*20 | 62*63*30 | 60*54*47 | 63*59*74 | |
| Board card | Input card | Various input CARDS can be combined arbitrarily: DVI-I board card (support compositevideo, DVI, HDMIL, component, VGA), 4K input card, SDI card, IP input. -STD boad, Information publishing board, etc | ||||
| output card | HDMI Card(inbuilt audio),HDMI Card(inbuilt audio+3.5mm audio port) | |||||
| Control | Communication method | Support TCP network control and serial port control; Support RS232 and RS485 loop out | ||||
| CMS control | DIMP software | |||||
| BS control | No need to install any client software | |||||
| Cross-platform control | Support windows, IOS MACOS, Android, Linux | |||||
Product Using Picture:
