HDBaseT HDMI Video Wall Processor 4x4 4x3 3x4 2x4 16 Input 16 Output

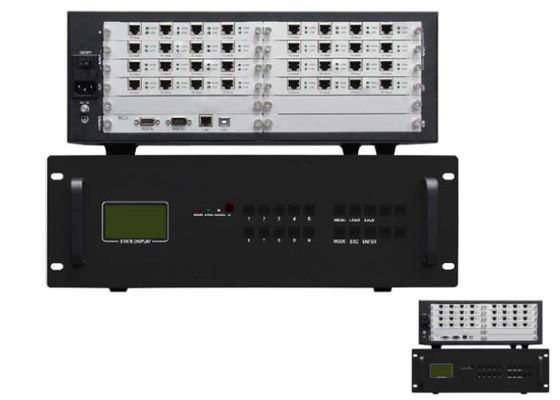

Large Image : HDBaseT HDMI Video Wall Processor 4x4 4x3 3x4 2x4 16 Input 16 Output

Product Details:

Place of Origin:	Mainland China
Brand Name:	VINCAN
Certification:	CE,FCC and RoHs
Model Number:	WL-HDVP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Carton box and standard export package
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 pcs per week

Contact Now

HDBaseT HDMI Video Wall Processor 4x4 4x3 3x4 2x4 16 Input 16 Output

Description

Product Name:	16 Input 16 Output HDBaseT Modular Video Wall Controller With 4x4 ,4x3 ,3x4 ,2x4	Inputs:	16-ch HDBaseT Input Ports
Outputs:	16-ch HDBaseT Output Ports	Application:	Indoor,Strage, Meeting Room ,..
Warranty:	1 Year	Control Mode:	RS232,Remote,IP,button,IR
Highlight:	HDMI Video Wall Processor 4x4 , 2x4 Video Wall Processor , FCC Video Wall Processor 4x4

HDBaseT HDMI Video Wall Processor 4x4 4x3 3x4 2x4 16 Input 16 Output

16 Input 16 Output HDBaseT Modular Video Wall Controller With 4x4 ,4x3 ,3x4 ,2x4

Technical Parameters

Description :	Up to sixteen video windows per display channel (Optional)
Inputs (Optional) :	DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video
Input resolution :	XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution
Output Signal :	DVI/VGA output
Output resolution :	1920*1200/60HZ (compatible with standard resolution )
system control software :	Application Pro dedicated control software
Power :	: Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power
consumption :	12w per channel
working temperature :	-20℃——60℃
working humidity :	5-95%
Chassis size :	5U/7U/15U standard rackmount chassis
Serial port :	RS-232, 9 pin, D-type connector
Baud rate :	115200

Serial port architecture :	2=TX,3=RX,5=GND
Ethernet control port :	RJ-45 female ports, TCP/IP protocol
Ethernet control speed :	Self-adaptive 10M or 100M, full duplex or half duplex
Working hours :	7 days x 24 hours
