Product Details:
|
| Product Name: | 4 Input 4 Output HDMI Modular Video Wall Controller With 2x2 ,1x2 ,2x1 | Inputs: | 4 -ch HDMI Input |
|---|---|---|---|
| Outputs: | 4 -ch HDMI Output | Consumption: | 12w Per Channel |
| Type: | TV Wall Controller | Application: | Indoor,stage,meeting Room |
| Highlight: | 4ch Video Wall Controller 2x2,48W Video Wall Processor 2x2,4ch 2x1 Video Wall Controller |
||
Modular HDMI Video Wall Controller 2x2 1x2 2x1 4 Input 4 Output
4 Input 4 Output HDMI Modular Video Wall Controller With 2x2 ,1x2 ,2x1
Product Introduction:
It is a Multi-function video wall controller that adopts a pure hardware FPGA system architecture and modular design.
It not only has a reliable and efficient history of providing high quality hardware architecture but also supports various interfaces and business Models for flexible and personalized combinations. The configuration input and output mixing functionality which can facilitate the system design, transformation and expansion.
The hardware also supports monitoring and previewing functions, multi-group screens, multi-user hierarchical control management, built-in scrolling subtitles just to name a few.
| DVI | DVI audio and video input card, support DVI and analog 3.5mm audio signal input, support HDCP, maximum support resolution 1920*1200@60Hz; |
| Dual-link DVI audio and video signal input card, support Dual-link DVI video and analog 3.5mm audio signal input, 330MHz clock, support 4K signal input, input resolution typical value 3840x2400@30Hz or 2560x1600@60Hz, input signal is not lost Frame processing | |
| HDMI | HDMI 1.3 audio and video input card, support HDMI video and embedded audio signal input, support HDMI 1.3, support HDCP, maximum support resolution 1920*1200@60Hz |
| HDMI 1.4 audio and video input card, support HDMI video and embedded audio signal input, meet HDMI 1.4 standard, input support 3840*2400@30, 3840*2160@30, 2560*1600@60 and below resolution | |
| HDMI 2.0 audio and video input card, support HDMI 2.0 and embedded audio signal input, support HDMI2.0 standard, support 4K signal input, input resolution typical value 3840x2160@60Hz | |
| DisplayPort | DisplayPort 1.1 audio and video input card, support DisplayPort and embedded audio signal input, support DP 1.1 standard, support 4K signal input, input resolution typical value 3840x2400@30Hz or 2560x1600@60Hz |
| DisplayPort 1.2 audio and video input card, support DisplayPort and embedded audio signal input, support DP 1.2 standard, support 4K signal input, input resolution typical value 3840x2160@60Hz | |
| VGA | VGA audio and video input card, support VGA and analog 3.5mm audio signal input, maximum support resolution 1920*1200@60Hz |
| YPbPr | YPbPr audio and video input card, support YPbPr and analog 3.5mm audio signal input, maximum support resolution 1920*1080@60Hz |
| SDI | SDI input card, support SD/HD SDI signal, compatible with 3G SDI signal, support SDI video and embedded audio signal input, support maximum resolution 1920x1080p@60 |
| CVBS | CVBS audio and video input card, support CVBS and analog 3.5mm audio signal input, PAL/NTSC system adaptive, support 3D comb filtering and 3D deinterlacing, support brightness, contrast, grayscale, saturation adjustment |
| HDBaseT | HDBaseT 2K audio and video input card, support twisted pair video and audio signal input, maximum input resolution 1920*1200@60Hz, and used with certified equipment, can transmit signals 100 meters through 6 types of twisted pair |
| HDBaseT 4K audio and video input card, support twisted pair video and audio signal input, maximum input resolution 4K@30Hz and backward compatible with typical resolution such as 1080p, and used with certified equipment, can be passed through 6 types of twisted pair Signal transmission 100 meters | |
| Fiber | 10G optical fiber audio and video 2K input card, support single-core LC optical signal input, maximum input resolution 1920x1080p@60Hz, and certified equipment. The transmission distance is single mode 10Km. |
| 10G optical fiber audio and video 4K input card, support single-core LC optical signal input, maximum input resolution 4K@30Hz, and certified equipment. The transmission distance is single mode 10Km. | |
| IP | H.264/AVC streaming media decoding card, support H.264 streaming media decoding, support decoding 1920x1080p@60 signal and backward compatible |
| H.265/HEVC 2K streaming media decoding card, support H.264/H.265 streaming media decoding, support decoding 1920x1080p@60 signal and backward compatible | |
| H.265/HEVC 4K streaming media decoding card, support H.264/H.265 streaming media decoding, support decoding 3840x2160@30 signal and backward compatible |
Output Interface
| DVI | DVI audio and video mosaic output card, support DVI-I and 4-channel analog 3.5mm audio signal output, maximum output resolution 1920*1200@60Hz, can output VGA signal through adapter |
| HDMI | HDMI 1.3 audio and video mosaic output card, support HDMI video and embedded audio signal output, support HDMI 1.3, maximum support resolution 1920*1200@60Hz |
| HDMI 1.4 audio and video splicing output card, support HDMI video and embedded audio signal output, meet HDMI 1.4 standard, output support 3840*2400@30, 3840*2160@30, 2560*1600@60 and below resolution | |
| Fiber | 10G optical fiber audio and video 2K splicing output card, support single-core LC optical signal output, maximum output resolution 1920x1080p@60Hz, and certified equipment. The transmission distance is single mode 10Km |
| 10G optical fiber audio and video 4K splicing output card, support single-core LC optical signal output, maximum output resolution 4K@30Hz, and certified equipment. The transmission distance is single mode 10Km |

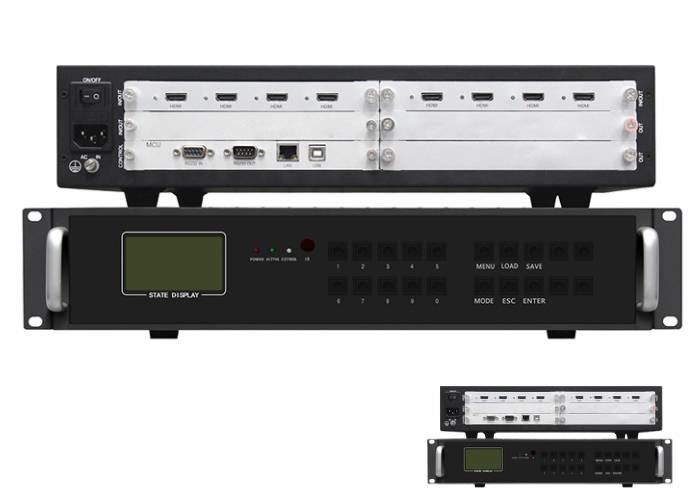

Products' picture:
