Product Details:
|
| Product Name: | Modular Video Wall Controller | Inputs: | 7U 18-ch X 1080P HDMI Input ,DVI(1x),HDMI(1x),VGA (1x),SDI(1x), 1x 4K HDMI Input Card |
|---|---|---|---|
| Outputs: | 16 -ch Hdmi Output | Output Resolution: | 1920*1080P/60HZ |
| Consumption: | 12w Per Channel | Type: | TV Wall Controller |
| Highlight: | RoHs Modular Video Wall Controller,7U Modular Video Wall Controller,7U HDMI Video Wall Processor |
||
4K Input Card 7U Modular Video Wall Controller 16 Ch HDMI Output
7 U 18-ch x 1080P HDMI input ,DVI(1x),HDMI(1x),VGA (1x),SDI(1x), 1x 4K HDMI input card 16 -ch hdmi output modular video wall controller
| type | Item | Detail parameters | ||||
| chassis | 1 U | 2U | 3.5 u | 7U | 12.5U | |
| Control board | 1 | 1 | 1 | 1 | 1 | |
| Expansion slots | 1 | 1 | 3 | 1 | 1 | |
| In/out card slots | 2 | 4 | 8 | 16 | 36 | |
| Weight | 8.5KG | 11KG | 18KG | 31.5KG | 49KG | |
| Dimension (L)*(W)* (H)cm | 58*45*21 | 60*54*20 | 62*63*30 | 60*54*47 | 63*59*74 | |
| Board card | Input card | Various input CARDS can be combined arbitrarily: DVI-I board card (support compositevideo, DVI, HDMIL, component, VGA), 4K input card, SDI card, IP input. -STD boad, Information publishing board, etc | ||||
| output card | HDMI Card(inbuilt audio),HDMI Card(inbuilt audio+3.5mm audio port) | |||||
| Control | Communication method | Support TCP network control and serial port control; Support RS232 and RS485 loop out | ||||
| CMS control | DIMP software | |||||
| BS control | No need to install any client software | |||||
| Cross-platform control | Support windows, IOS MACOS, Android, Linux | |||||
Features:
1. Edge shield technology.
2. Edge fine-tuning technology.
3. User-defined modes.
4 .Image parameters (white balance/brightness/contrast/saturation) adjustment.
5. Background Logo display (customized requirement).

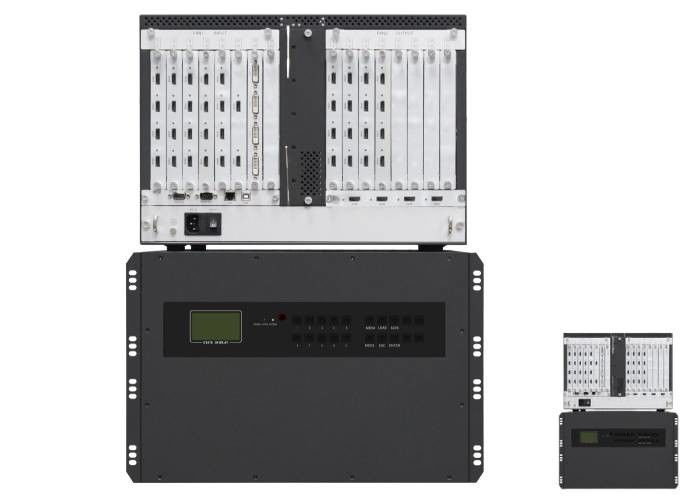

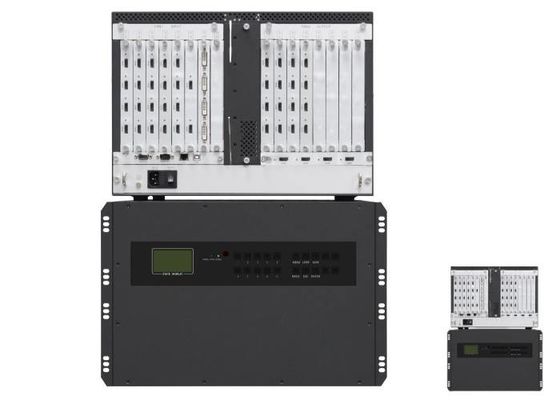

Product picture:
