Product Details:
|
| Application:: | KTV, Conference, School,Live Show | Material:: | Metal+Aluminum |
|---|---|---|---|
| USB Connection:: | Yes | Control Mode:: | Control By IPhone,iPad And Computer Software |
| Use:: | Professional Speaker | Product Name: | Dfr22 Diamond Home Audio Dsp Dante Controller Audio Control Lc8i |
| Highlight: | 600MHz HDMI Splitter Switcher,6Gbps HDMI Splitter Switcher,FCC HDMI Switch 5 In 1 Out |
||
Features:
1.Maximum input electronic level:4V(RMS)
2.Maximum output electronic level:4V(RMS)
3.Music channel gain:MAX:12dB
4.Mic sensitivity:64mV(Out:4V)
5.S/N Ration:>80dB
6. Dfr22 Diamond Home Audio Dsp Dante Controller Audio Control Lc8i.
Specification :
|
Item
|
Specifications |
| Max Input Level | 18dBu |
| Max Output Level | 18dBu |
| Default Output Level | 0dBu |
| THD+N | <0.003%；1kHz@+4dBu <0.0035%；1kHz@+10dBm <0.0035%；20Hz～20kHz@+4dBu |
| Frequency Response | 20Hz-20kHz, +/-0.2dB |
| In To Out dynamic range | 110dB (Unrecorded right) |
| S/N | -110dB (Unrecorded right) |
| ADC Dynamic Range | CS5361 114dB |
| DAC Dynamic Range | CS4382A 114dB |
| DSP | 400Mhzfloating - point SHARC ADSP-21488 |
| Sampling Frequency | 48K |
| QE | 24Bit |
| Storage | 32 |
| Control Mode | 100M Ethernet |
| Language | English |
| Noise Gate | Yes |
| Feedback | Yes |
| Signal Generator | Yes |
| Pressure Limiter | Independent 12 channel |
| Delay | Output 1-4 218ms Output 5-8 148ms |
| PEQ Low Shelf High Shelf |
Independent 16-band |
| High Pass/Low Pass Bessel Butterworth Link-Riley |
Independent 12 channel -6dB/oct -12dB/oct -18dB/oct -24dB/oct -36dB/oct -48dB/oct |

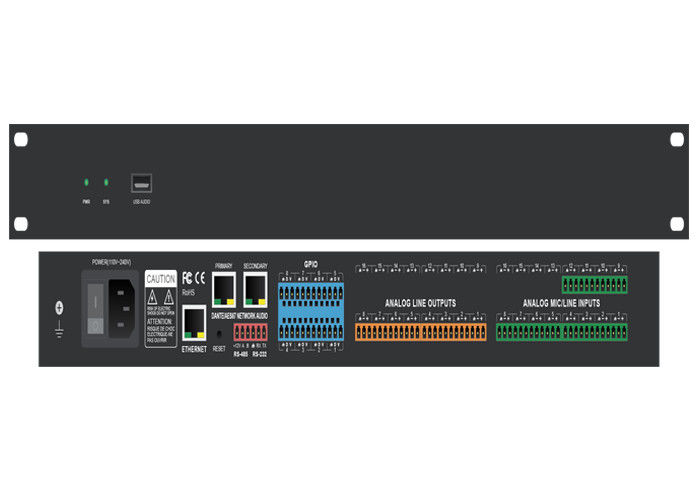

| Product name | Dfr22 Diamond Home Audio Dsp Dante Controller Audio Control Lc8i |
Typical System Application:
Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.
It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,
it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will
conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made
on the mixed signal via the auto mixer of main processor so that more microphones can be connected
to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.
Dfr22 Diamond Home Audio Dsp Dante Controller Audio Control Lc8i.
