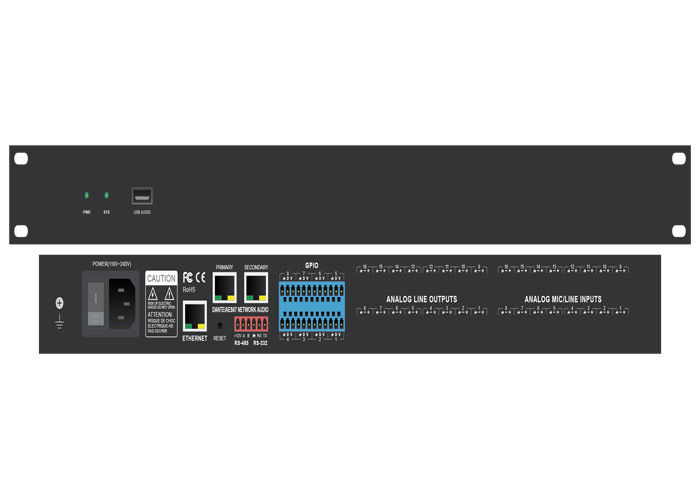

Product Details:
|
| Maximum Power Consumption: | <40W | Dimensions (Width X Depth X Height): | 482 X 260 X 45mm |
|---|---|---|---|
| Shipping Weight: | 3KG | Processor: | ADI SHARC 21489 |
| Max. Input Level:: | +20dBu | Product Name: | Pwa15bt Audio Control Dsp Boss Atv Speaker Bluetooth Controller Audio Rgb Controller |
| Highlight: | 6Gbps HDMI Switch 5 In 1 Out,600MHz HDMI Switch 5 In 1 Out,6Gbps 5 In 1 Hdmi Switch |
||
Descriptions:
Specifications:
|
Item
|
Specifications |
| Max Input Level | 18dBu |
| Max Output Level | 18dBu |
| Default Output Level | 0dBu |
| THD+N | <0.003%；1kHz@+4dBu <0.0035%；1kHz@+10dBm <0.0035%；20Hz～20kHz@+4dBu |
| Frequency Response | 20Hz-20kHz, +/-0.2dB |
| In To Out dynamic range | 110dB (Unrecorded right) |
| S/N | -110dB (Unrecorded right) |
| ADC Dynamic Range | CS5361 114dB |
| DAC Dynamic Range | CS4382A 114dB |
| DSP | 400Mhzfloating - point SHARC ADSP-21488 |
| Sampling Frequency | 48K |
| QE | 24Bit |
| Storage | 32 |
| Control Mode | 100M Ethernet |
| Language | English |
| Noise Gate | Yes |
| Feedback | Yes |
| Signal Generator | Yes |
| Pressure Limiter | Independent 12 channel |
| Delay | Output 1-4 218ms Output 5-8 148ms |
| PEQ Low Shelf High Shelf |
Independent 16-band |
| High Pass/Low Pass Bessel Butterworth Link-Riley |
Independent 12 channel -6dB/oct -12dB/oct -18dB/oct -24dB/oct -36dB/oct -48dB/oct |
| Product name | Pwa15bt Audio Control Dsp Boss Atv Speaker Bluetooth Controller Audio Rgb Controller |
3.Typical System Application:
Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.
It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,
it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will
conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made
on the mixed signal via the auto mixer of main processor so that more microphones can be connected
to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.
Pwa15bt Audio Control Dsp Boss Atv Speaker Bluetooth Controller Audio Rgb Controller.
