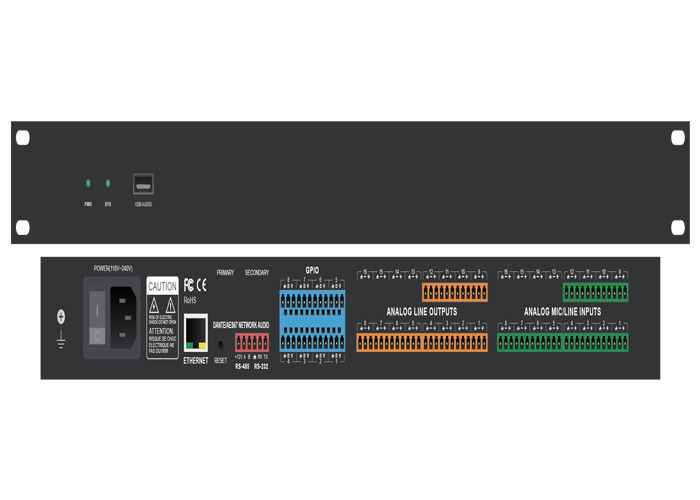

pwa15bt digital signal processor audio control dsp

Description:

• USB Background music playback and recording function;
• Support mobile phone, tablet control and distributed cloud control;
• DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function;
• Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization;
• Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter;
• Full function matrix remix;
• Built-in automatic camera tracking function;
• Support for scenario presets；
• Automatic memory protection when power off;
• 1U Whole aluminum chassis;
• pwa15bt digital signal processor audio control dsp.

Specification :

3.Typical System Application:

Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.

It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,

it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will

conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made

on the mixed signal via the auto mixer of main processor so that more microphones can be connected

to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.

pwa15bt digital signal processor audio control dsp.
