Product Details:
|
| Input: | HDMI(Support HDCP) | Interface: | 1000M Ethernet Port(RJ45) |
|---|---|---|---|
| Control Panel: | Webpage Control Panel(language Customizable) Or APP | Firmware Upgrade: | Firmware Is Upgradeable |
| Dimension (W X L X H): | 170 X 105 X 30 /mm | Net Weight: | 0.4kg |
| Temperature: | 0 To 45(For Working), -20 To 80(For Storing) | Input Voltage: | DC 12V /1A |
| Power Consumption: | 5w | ||
| Highlight: | MPEG4 HDMI Video Encoder,H.265 HDMI Video Encoder,SRT Streaming Encoder |
||

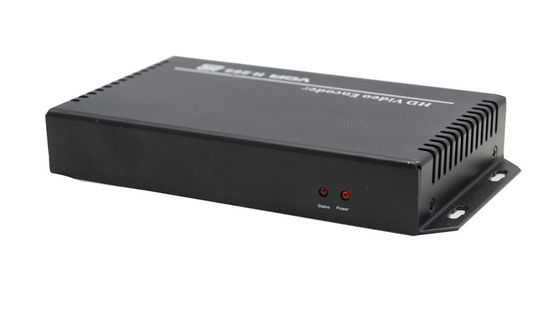

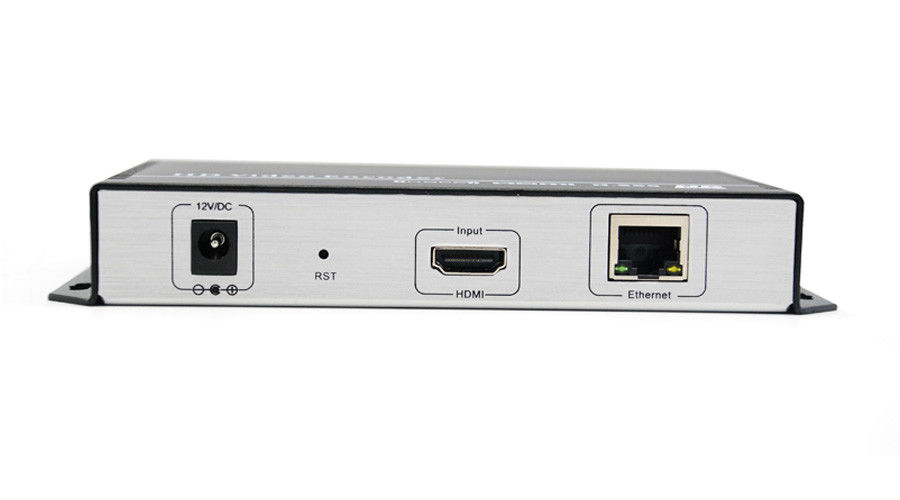

MPEG4 HDMI Video Encoder
MPEG4 HDMI Video IP Encoder IPTV H.265 RTSP RTMP SRT Live Encoder For IPTV Live Broadcast Twitch Youtube Facebook
Description:
MPEG4 HDMI Video IP Encoder IPTV H.265 RTSP RTMP SRT Live Encoder for IPTV Live Broadcast Twitch Youtube Facebook is a HD audio and video encoding device with powerful functionality.It supports HDMI(audio build-in) and external stereo audio(3.5mm jack) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol.Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.
If you inputexternal audio,you canchoose HDMI embedded audio or external audio as output audio. We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.
Features :
● High-performance hardware encoding
● support H.265 video coding efficiency
● support H.264 BP/MP/HP
● support AAC / G.711 Advanced Audio Coding format quality
● CBR / VBR rate: 16Kbps ~ 12Mbps
● 1000M network interface uses full duplex mode
● mainstream and secondary stream can be pushed to different server
● Supports up to 720P, 1080P @ 60HZ HD video input
● Support image parameter settings
● support HDCP protocol and Blu-ray
● support HTTP, UTP, RTSP, RTMP, RTP, ONVIF protocol
● the mainstream and side stream use the different network protocol for transmission
● WEB interface, English and Chinese is optional for configuration interface
● WEB interface management authority
● Support remote management in WAN(WEB)
● Support resolution customized settings
● Support one key to restore the factory configuration
● Support SDK , secondary development
Parameter :
|
Video |
|
|
Input |
HDMI(Support HDCP) |
|
Input Resolution |
Max 1080P or 1080i resolution, Max 60fps frame rate |
|
Encoding Type |
HEVC /H.265 and H.264 /AVC and MJPEG for selection |
|
Encoding Levels |
H.265 main profile; H.264 high /main /baseline profile |
|
Video Bitrate |
Adjustable from 32kbit /s to 32mbit /s |
|
Bitrate Control |
CBR or VBR or Strong CBR for selection |
|
Output Resolution |
It is adjustable, max 1920x1080P /60fps |
|
Video Pre-processing |
De-interlacing, noise reducing and sharpening |
|
Audio |
|
|
Input |
HDMI embedded audioorexternal stereo audio(3.5mm jack) |
|
Audio Encoding |
AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 |
|
Sampling Rate |
44.1KHz, 48KHz |
|
Bitrate Control |
Adjustable from 48000~320000 |
|
Sampling Accuracy |
24bit |
|
ONVIF |
G.711 |
|
Network |
|
|
Interface |
Ethernet port(1000 BASE-T) |
|
Streaming Protocol |
NDI, SRT, HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc |
|
Control Panel |
Webpage control panel(language customizable) |
|
Firmware Upgrade |
Firmware is upgradeable |
|
General |
|
|
Dimension (W x L x H) |
130 x 105 x 30 /mm |
|
Net Weight |
0.3kg |
|
Temperature |
0 to 45(For working), -20 to 80(For storing) |
|
Input Voltage |
DC 12V /2A |
|
Power Consumption |
5w |
Diagram:
