Product Details:
|
| Product Name: | 46inch 49 Inch Panel Size 3.5mm Bezel Narrow Full HD Resolution BOE LCD Video Walls Display | Surface: | Anti-glare |
|---|---|---|---|
| MTBF: | ＞100,000h | Refresh Rate: | 60 Hz |
| Contrast: | 1500:1(typ.) | Aspect Ratio: | 16:9 |
| Highlight: | 3.5mm Bezel Narrow LCD Video Walls,46inch LCD Video Wall Screen,BOE LCD Video Wall Screen |
||

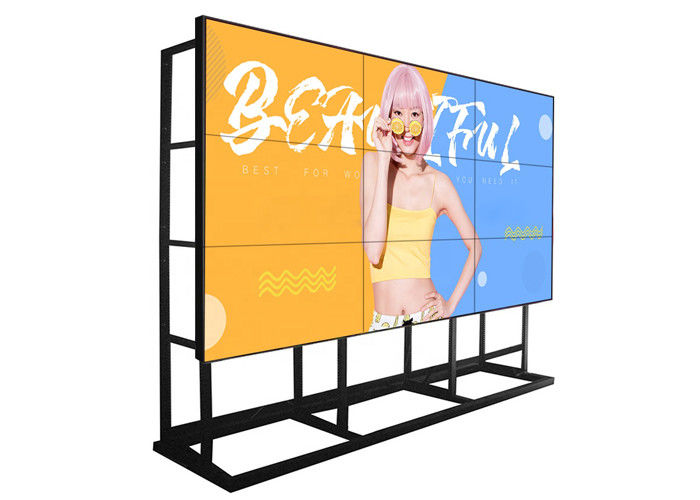

46inch 49 inch Panel Size 3.5mm bezel narrow full HD Resolution BOE LCD Video Walls Display Screen
Product key features:
1, Panel size: 46", 49",55",65" optional;
2, Ultra narrow frame design,the narrowest bezel is 0.88mm and the bezel can be optional.
3, Wall mounted,Floor standing,floor standing cabinets and front push hydraulic Pop out optional.
4,The front:the shell adopting black matt anti magnetic unique and exquisite strong in anti interference;
5, Interfaces:2xHDMI input,DP loop in,DP loop out,DVI input,VGA input,CVBS loop,USB,Switch,Power port;
6, Accessories:English manual,hanger,RS232-RJ45 converter, English IR controller,RJ45 cables,software USB sticker
7, Working Temperature:0℃~50℃.Working Humidity:20%-80%;
8, Application areas:real estate sale center,clothing store,ticketing center, hotel lobby, mobile phone shop,restaurant.
9, 46inch 49 inch Panel Size 3.5mm bezel narrow full HD Resolution BOE LCD Video Walls Display Screen
Technology specification :
| 40" BOE 8mm bezel | 500nits brightness,WLED Backlit,with 1080P HDMI input |
| System controller | 1 in 16 output HDMI splitter |
| Bracket | POP out bracket for 46" lcd video wall |
| Standard Accessories | English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector |
| Packing | 4/5 screens in 1 wooden case |
| Panel Specifications | |
| LCD Technology | Original BOE DID LCD |
| Active Screen Diagonal | 46" |
| Panel Dimension(WxH) | 1002.28*558.72 |
| Total Bezel Width | 8mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920*1080 |
| Backight System | WLED |
| Luminance(nits) | 500cd/㎡ |
| Contrast | 1500:1(typ.) |
| Viewing Angle | H 178|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | ＜＝6ms |
| Life(hrs) | ＞60,000(hrs) |
| MTBF | ＞100,000h |
| Surface | Anti-glare |
| Prodcut name | 46inch 49 inch Panel Size 3.5mm bezel narrow full HD Resolution BOE LCD Video Walls Display Screen |
Connections diagram for 46inch 49 inch Panel Size 3.5mm bezel narrow full HD Resolution BOE LCD Video Walls Display Screen :
